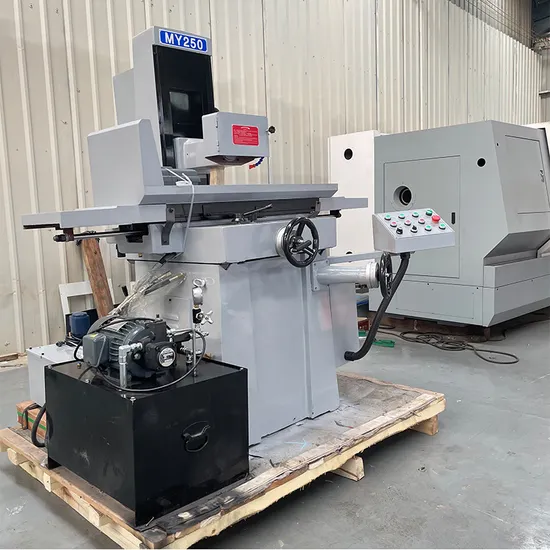

High Precision Surface Grinding Machine Tool with Magnetic Chuck Table

Product Description

Product Description
Features of the Wheel Head Moving Surface Grinder:Our surface grinder series is perfectly designed for efficiently grinding steel, castings, and non-ferrous components in the machine manufacturing sector.This machine boasts accuracy that aligns with the stringent National Standard for horizontal spindle & rectangular worktable surface grinders.The worktable's longitudinal movement is powered by a vane pump, ensuring smooth operation with minimal noise disturbance.The wheel head spindle's bearings are crafted with bimetal shell technology, providing resilience against heavy impacts and enabling the machine to execute high-load grinding with ease.The wheel head's cross movement can be manually operated or automatically driven by hydraulic oil, offering ease of use. The vertical feed is manually operated, supplemented by a rapid elevating motor, reducing manual labor efforts while boosting work efficiency.Experience seamless operation with our machine's reliable performance. It boasts low noise, stable accuracy, and is user-friendly, garnering wide acclaim from our customers.
Product Parameters

Model

Unit

M7130

M7140A

M7140A

M7140A

M7150A

M7150A

M7150A

M7163

M7163

M7163

x1600

x2200

x1000

x1600

x2200

x1250

x1600

x2200

Worktable size(WxL)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max matching dimension(W x L)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max distance between spindle center

Mm

575

600

700

lineand worktable surface

Longitudinal moving speed of worktable

m/min

5//25

3//27

T-slot number x W

Mm

3x18

3x22

Wheel head

Continuous

m/min

0.5-4.5

feed speed

Cross moving

Intermittent

Mm/t

3//30

feed speed

Hand wheel

Mm/gra

------

0.02

0.01

feed

Vertical

Rapid

Mm/min

400

Moving

speed

of wheel head

Hand wheel

Mm/.gra

0.005

feed

Wheel Head

Power

Kw

5.5

7.5

7.5

motor

Rotation

Rpm

1440

speed

Total power

Kw

8.63

11

13.5

12.25

13.75

15.75

13.75

15.75

Max loading capacity

Kg

470

620

1000

1380

700

1240

1410

1010

1290

1780

of worktable

(with chuck)

Chuck size(WxL)

Mm

300x680

400x1000

400x800

400x1000

500x1000

500x800

500x1000

630x1250

630x800

630x1000

x1

x1

x2

x2

x1

x2

x2

x1

x2

x2

Wheel size

Mm

350x40

400x40

400x40x203

(ODxWxID)

x127

x127

Machine

Cm

286x154

311x182

494x182

674x182

311x190

514x190

674x190

399x220

514x220

674x220

dimension(LxWxH)

x203

x223

x223

x223

x242

x242

x242

x242

x242

x242

Machine Weight

t

3.49

5.01

6.51

7.6

5.78

7.32

8.78

6.86

7.85

9.65
