Gsi Torsion Bar Synchronous Press Brake Plate Bending Machine Folding Machine

Product Description

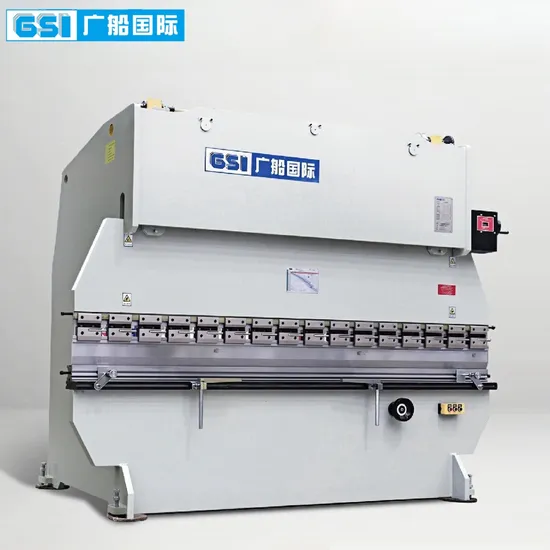

Product DescriptionGSI AC Series Torsion Bar Synchronous Press Brake AC160/4000
Product Features:
- Two stage speed control, first rapidly descending (fast forward) and then slowly pressurizing (work forward);
- The back gauge is driven by a motor, with manual adjustment and digital display;
-Three cylinder synchronous downward pressure can compensate for the slight deformation of the workbench and pressure beam after being subjected to force.
-The working mode includes jog, single operation, and continuous operation. The reversing and pressure holding time can be controlled through a time relay. The lower workbench panel has a full-length T-shaped groove for easy installation of molds of different specifications.
-According to the thickness and bending length of the plate, the corresponding bending pressure can be adjusted
Product Details
Fully Welded Steel Plate Structure
- Fully welded steel plate structure, with good rigidity and stability;
-Adopts a large precision boring and milling machine from Germany, ensure the accuracy and quality. 8cm Thickness Upper Slide
- 8cm thickness upper slide, 30% thicker than normal torsion bar press brake;
-Strong and durable without deformation.Integrated Hydraulic System
- Integrated hydraulic system, slide up type, wide speed adjustment range, stable and reliable operation.
Mechanical Torsion Bar Forced Synchronous Operation
- The upper and lower motion balance of the knife beam adopts mechanical torsion axis forced synchronous operation;
-Using mechanical positioning blocks ensures the accuracy of repeated positioning of the upper mold.Motor-driven Back Gauge
- Adopting a large lead and high-precision ball screw, the servo motor is driven quickly, with the characteristics of fast speed and high positioning accuracy. The multi-level gear design increases the positioning range.Motor-driven Back Gauge
- Adopting a large lead and high-precision ball screw, the servo motor is driven quickly, with the characteristics of fast speed and high positioning accuracy. The multi-level gear design increases the positioning range.
Main technical parameters of AC series torsion axis synchronous bending machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Strok(mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm	Speed			Overall Dimension			Weight (kg)
										Approach (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	AC63/2500	630	2500	2050	320	150	450	5.5	500	60	12	90	2650	1350	2500	4800
2	AC100/3200	1000	3200	2500	450	150	480	7.5	500	70	10	80	3350	1600	2680	7800
2	AC100/4000	1000	4000	3100	450	150	480	7.5	500	70	10	80	4150	1600	2830	10000
4	AC125/3200	1250	3200	2500	450	150	480	11	500	70	10	80	3350	1600	2780	8500
5	AC125/4000	1250	4000	3100	450	150	480	11	500	70	10	80	4150	1600	2930	10600
6	AC160/3200	1600	3200	2500	450	150	480	11	500	60	8	60	3350	1650	2880	10500
7	AC160/4000	1600	4000	3100	450	150	480	11	500	60	8	60	4150	1650	2980	12500
