Groundnut Picking Harvester Peanut Harvesting Picker Machine

Product Description

groundnut picking harvester peanut harvesting picker machine

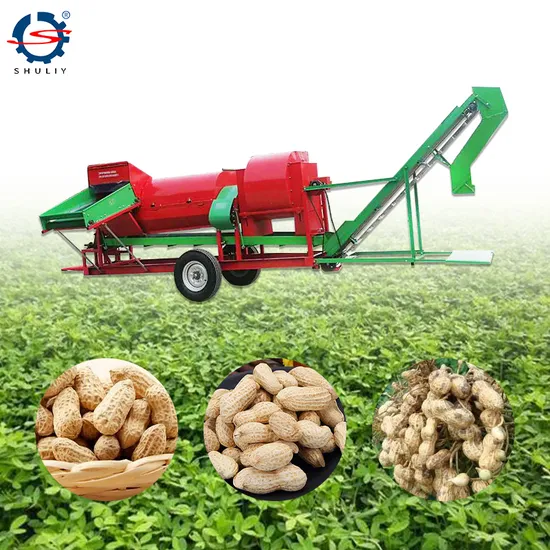

Introduction of peanut picking machine
The peanut picking machine is used for separating the peanuts from peanut stems after peanuts harvest. It works well both dry peanut and wet peanut. It has high picking rate, low breakage rate and high efficiency. The machine can be matched with diesel engine, tractor or elector motor. It is used flexibly in the field.
Feature of peanut picking machine
1. The machine has good performance, compact structure, easy to operate, safe and reliable.
2. High-quality peanut automatic bagging system, the elevator at the end of the machine can help customers collect peanuts easily and quickly.
3. It can be used flexibly in the field and be moved anytime and anywhere.
Technical parameters of peanut picking machine

Model	5HZ-1800
Power	22kw motor ,28 HP diesel engine or ≥35 HP tractor
Rotation speed of roller	550r/min
Loss rate	≤1%
Broken rate	≤3%
Impurity rate	≤2%
Capacity	1100kg/h
Inlet dimension	1100*700mm
The height from inlet to ground	1050mm
Weight	900kg
The model of separation and cleaning	Vibrating screen and draught fan
The dimension of screen	3340*640mm
Dimension of machine	6550*2000*1800mm
The diameter of roller	600mm
The length of roller	1800mm

How the peanut picking machine works?
1. The peanut picking machine is mainly composed of a frame, a motor (diesel engine or tractor), a transmission part, a fruit picking off part, a fan selection part and a vibration mechanism.
2. During operation, the raw materials through the feeding inlet enter the peanut picking system.The rotating blow of the roller picking rod makes the peanuts to leave the stem. The peanuts and sundries fall to the shaker through the gravure hole.The stems are discharged through the outlet and the scattered peanuts on the vibrating screen are transmitted to the suction port of the fan through the vibrating screen to remove the impurities. The clean peanuts are selected.
