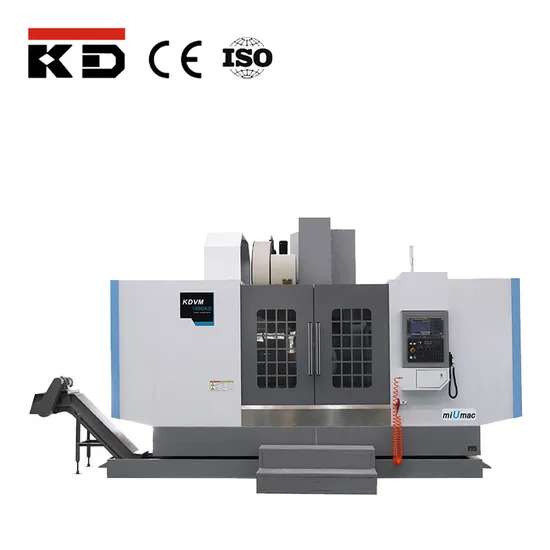

Vertical Machining Center Chinese Supplier Heavy Duty CNC Milling Machine
| US$85,000.00-89,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM1890L
Type
Machining Center
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
1800mm
Y Travel
900mm
Z Travel
700mm
Spindle
Bt50
Spindle Speed
6000rpm
Main Motor
18.5/22kw
Transport Package
Wooden Pallets(Ht)
Specification
2000X900mm
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523
Product Description
Technical specifications:
| MODELS | KDVM1890L |
| TRAVEL | |
| X axis | 1800mm |
| Y axis | 900mm |
| Z axis | 700mm |
| Spindle center to column | 1080mm |
| Spindle end to table | 180-880mm |
| TABLE | |
| Table size | 2000×900mm |
| T-slot(width×number×space) | 22mm×5×165mm |
| Max. table loading | 1900kg |
| SPINDLE | |
| Taper bore of spindle | BT50/φ190 |
| Spindle power | 15/18.5kw |
| Spindle speed | 6000rpm |
| FEED | |
| X/Y/Z fast travel speed | 20/20/20min |
| Torque axis motors | 36Nm |
| ATC | |
| Tool number | 24 |
| Time (tool-tool) | 4s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.02/0.01/0.01mm |
| Repeatability positioning accuracy for X/Y/Z | ≤0.012/0.008/0.008mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 4640x3450x3100mm |
| Net weight | 16000kg |
