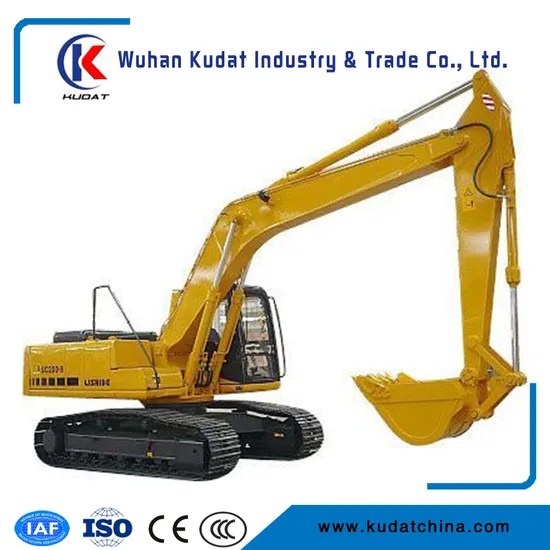

20t Hydraulic Tracked Excavator

Product Description

Characteristics:
Komatsu KES standard production with strict quality control
The US made Cummins engine 198KW global service available
Japanese Kawasaki hydraulic pump, valve and swing motor
Japanese Kayaba travel motor
World famous electric parts
Spacious cab with A/C and pilot control

Item	Unit	Reference value
Engine (genuine and imported)
Model		6BT5.9-C
Type	4-stroke, water cooling, inline, in-head valve, direct injection, turbo charged
Cylinder no. cylinder bore × stroke	mm	6-102×120
Piston displacement	L	5.9
Rated output power	Kw/rpm	108/2100
Max. torque	N.M/rpm	597/1600
Start motor	Kw	24V,4.5
Alternator	A	24V,4.5
Battery	v,Ah	12,120×2
Carrying wheel	(A)	2
Standard working device
Standard boom		SC210.7/SC210LC.7
Bucket capacity	m3	Scope 0.4-0.8
Rock bucket (option)	m3	0.6
Dredging bucket (option)	m3	0.8
Grading bucket (option)	m	2
Arm (standard device)		SC210.7/SC210LC.7
Travel part
No. of supporting wheel on each side	(A)	7
No. of standard track board on each side		45
Track gauge	mm	2180
Track grounding length	mm	3260
Hydraulic system / control valve (Kawasaki)
Type		KMX15R
Control method		Hydraulic pilot type
Travel motor (KYB)		Axial piston type (with brake valve and parking brake)×2
Slewing motor (Kawasaki)		Axial piston type (with brake valve and parking brake) ×1
Hydraulic system / hydraulic pump (Kawasaki)
Type × no.	l/min	Variable displacement pump
Flow	L/min	Piston type:214×2
Set pressure	(Mpa)(Kg/cm2)	Piston type:34.8(355)
Hydraulic system / hydraulic cylinder (Reciprocating piston type)
Boom cylinder		120×85
Arm cylinder		135×95
Bucket cylinder		115×80
A Overall length (in transportation)(mm)			9423
B Overall width(mm)			2780
C Overall height (in transportation)(mm)			3165
D Body overall height ( cab top)(mm)			2940
E Clearance of super structure(mm)			1064
F Min clearance(mm)			468
G Rear slewing radius(mm)			2720
H Track grounding length(mm)			3260
J Track length(mm)			4070
K Track gauge(mm)			2180
L Track width(mm)			2780
M Track board width(mm)			600
V Min. slewing radius of working device(mm)			3040
Z Top height for min. slewing radius of working device (mm)			8005

After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
