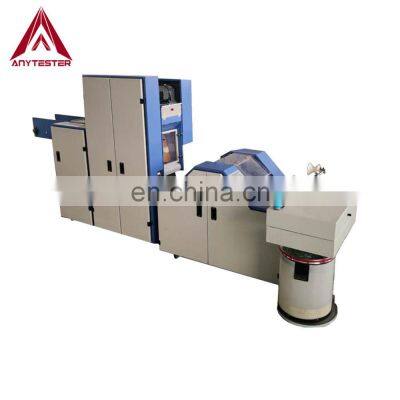

Lab Wool Small Carding Machine with Villus Bucket

Product Description

Product Description
Product DescriptionAT202-300 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.SpecificationModelAT202-300Carding partsWorking width360mmFeed in roller diameterΦ60mmCylinder diameterΦ400mmDoffer diameterΦ200mmLicker-in diameterΦ200mmWorking roll diameterΦ189mmWipe roll diameterΦ96mmSpeedAdjustable (Frequency converter control)Max. fiber lengthabout 60mmOutput capacity1~2kg/hMotor power2KWDimension1840mm*1100mm*1360mmWeight400KgPower supplyAC220V/380V, 50/60HzVillus part (optional)Function descriptionIt combined the function of opening, cleaning and mixingWorking width300mmMotor Power1.85kwSample transport methodAutomatically from villus part to carding partDimension1400*900*1600mmWeight200KgPower supplyAC220V/380V, 50/60HzDetails & Features★ Imported frequency converter control, high efficiency.★ Mini type machine, save researching cost and easy to operate and maintain.★ Can be used for wool fiber or chemical fibers.★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web★ It can produce web or sliver according to customer’s selection.★ It is driven by a 2kw motor, equipped with frequency converter to adjust the running speed.★ With full-closed protective cover.★ Two rollers feeding.★ The output can be net or sliver, it’s select-ableOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
