Low Frequency Renewable Split Phase 3kw 10 Kw 1000watt 120V 10kw 8000 Watt 5kw 8000W 5kVA 12kw Pure Sine Wave off Grid Energy Hybrid Power Solar Inverter Price
| US$110.00-720.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XD-LF
Nature of Source Flow
Active Inverter
Phase
Single Phase Solar Inverter
Output Power
1kw/1.5kw/2kw/3kw/4kw/5kw/6kw/7kw/8kw/10kw/12kw
Certification
CE, ISO9001, Test Report
Brand
Xindun Power
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Pure Sine Wave Solar Inverter
Rated Output Voltage (VAC)
110V/120V/220V/230V/240V
Application
Home/Industrial/Office /Solar Power System
Output Efficiency
>85%
Charging Mode
MPPT Solar Inverter
Battery Type
Lithium /Lead Acid /Gel Battery and Others
Transfer Time
>4ms
Output Frequency
50/60Hz Solar Inverter
Color
White Solar Hybrid Inverter /OEM/ODM
N.W (Kg)
9kg~60kg
Communication
RS485/APP(WiFi Monitoring or GPRS Monitoring)
Display
LCD Display
Protection
Overload/Short Circuit/Temperature Protection
Charging Current
30A~100A
Product Name
Home Solar Inverter for Home Use
Working Modes
AC First, Battery First, PV First
Transport Package
Carton Packing
Specification
333x253x126mm~684x430x250mm
Trademark
Xindun/OEM/ODM
Origin
China
HS Code
8504403090
Production Capacity
50000 Pieces/Year
Product Description
Inverter Feature 1. Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.2. Smart LCD show equipment status and parameters. 3. The adjustable mains charging current range is 0~30A. 4. Suffer 3 times peak power, ensure the safe and stable operation of the equipment. 5. Support diesel and gasoline generators, suitable for various power grid. 6. Suitable for industrial and residential used, wall-mounted desigm. Product Detail
Specification
| Specification | |||||||||||
| Model: LF/LF-T | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 70248 | 80248 | 10348 | 12348 | |
| Rated Power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | 10KW | 12KW | |
| Battery Voltage | 12/24/48VDC | 24/48VDC | 48VDC | ||||||||
| Size(L*W*Hmm) | 470x300x148 | 530x335x158 | 684x430x250 | ||||||||
| Packing Size(L*W*Hmm) | 545x385x223 | 605x420x233 | 705x485x315 | ||||||||
| N.W.(kg) | 13.5 | 18 | 20 | 22 | 24 | 26 | 28 | 47 | 57 | 60 | |
| G.W.(kg) | 15 | 19.5 | 21.5 | 24 | 26 | 28 | 30 | 54 | 64 | 67 | |
| Installation Method | Wall-Mounted | ||||||||||
| Parameter | |||||||||||
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | |||||||||
| AC Input Voltage Range | 80VAC~133VAC(105VAC)/85VAC~138VAC(110VAC)/90VAC~143VAC(115VAC)/95VAC~148VAC(120VAC) 170VAC~275VAC(220VAC)/180VAC~285VAC(230VAC)/190VAC~295VAC(240VAC)(1000W~7000W ) 87VAC~123VAC(105VAC)/92VAC~128VAC(110VAC)/97VAC~133VAC(115VAC)/102VAC~138VAC(120VAC) 185VAC~255VAC(220VAC)/195VAC~265VAC(230VAC)/205VAC~275VAC(240VAC)(8KW~12KW) | ||||||||||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | ||||||||||
| Max AC charging current | 0~30A(Depends on model) | ||||||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||||||
| Output Voltage(Battery Mode) | AC105V~120V model: 105VAC±2%/110VAC±2%/115VAC±2%/120VAC±2%(can be set) AC220V~240V model: 220VAC±2%/230VAC±2%/240VAC±2%(can be set) | ||||||||||
| Output Frequency(Battery Mode) | 50/60Hz±1%(can be set) | ||||||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||||||
| Efficiency(AC Mode) | ≥99% | ||||||||||
| Output Voltage(AC Mode) | AC 105V~120V model: 105VAC±10%/110VAC±10%/115VAC±10%/120VAC±10%(can be set) AC 220V~240V model: 220VAC±10%/230VAC±10%/240VAC10%(can be set) | ||||||||||
| Output Frequency(AC Mode) | Follow input | ||||||||||
| Output waveform distortion (Battery Mode) | ≤3%(Linear load) | ||||||||||
| No load loss(Battery Mode) | ≤1% rated power | ||||||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||||||
| No load loss (Energy saving Mode) | ≤10W | ||||||||||
| Insidc Solar controller (Optional) | Charging Mode | MPPT | |||||||||
| Charging current | 30A~60A | 60A~100A | 80A~100A | ||||||||
| PV Array Maximum Power | 12V system: 420W(30A)/560W(40A)/ 700W(50A)/840W(60A); 24V system: 840W(30A)/1120W(40A)/ 1400W(50A)/1680W(60A); 48V system : 1680W(30A)/2240W(40A)/ 2800W(50A)/3360W(60A) | 24V system : 1680W(60A)/2240W(80A)/2800W(100A); 48V system : 3360W(60A)/4480W(80A)/5600W(100A) | 4480W(80A)/5600W(100A) | ||||||||
| Max PV Input Voltage (Voc) (At the lowest temperature) | 12V/24V system: 120VDC; 48V system: 180VDC | ||||||||||
| MPPT tracking range | 12V system: 15V-80V; 24V system: 30V-100V; 48V system : 60V-140V | ||||||||||
| Standby loss | ≤3W | ||||||||||
| Maximum conversion efficiency | >95% | ||||||||||
| Battery Type | Custom battcry | Charging and discharging parameters of different types of batteries can be set through the operationpanel by oneself | |||||||||
| Protection | Battery lowvoltage alarm / Battery lowvoltage protection / Battery overvoltage alarm / Battery overvoltage protection / Battery overvoltage recovery voltage / Overload power protection / Inverter output short circuit protection / Temperature protection | ||||||||||

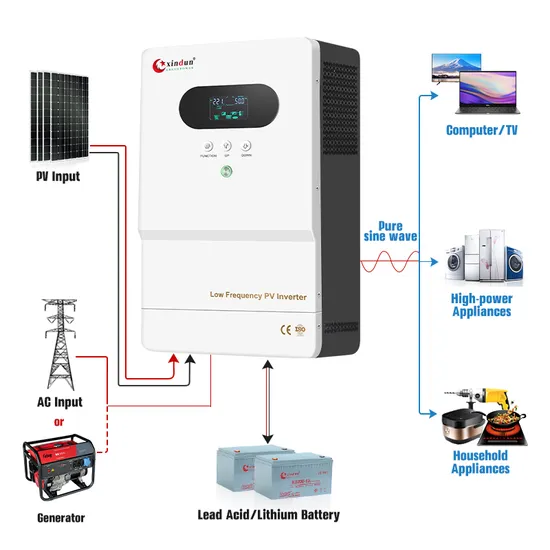

Wiring diagram
Application Case
Packing&Delivery
Package
Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.
Shipping
. Fedex/ DHL/ TNT/ UPS for samples, door-to-door. 2. By air or by sea for batch goods, for CFL, Air port/ Port receiving. 3. Customers specifying freight forwarders or negotiable shipping methords. 4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
