Cooray Cr-SL D266 Syntec/GSK Swiss Type CNC Lathe
| US$35,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CR-SL
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
270.00cm * 145.00cm * 180.00cm
Package Gross Weight
3700.000kg

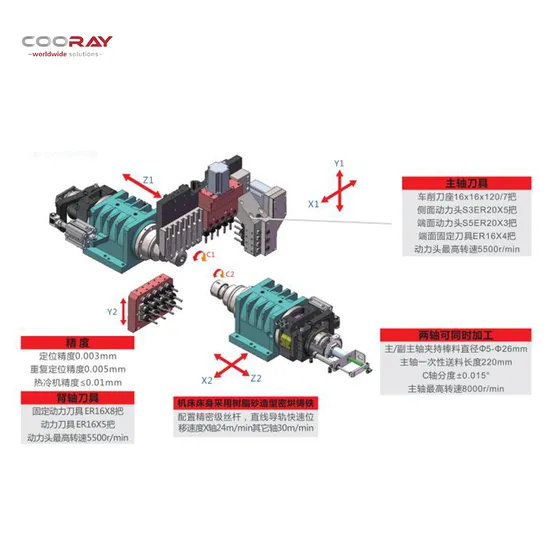

Product Description
Product Description| model | D266 | ||
| navar | system | FANUC | The new generation |
| Fast moving speed | X-axis 24m / min other axis 30m / min | ||
| range of work | Holding rod material diameter of main and secondary shaft | φ5-φ26mm | |
| Maximum drilling diameter of the main and secondary shaft | φ10mm | ||
| Maximum tapping tooth diameter of the main and secondary axis | M8 | ||
| Maximum drilling diameter of the secondary spindle | φ8mm | ||
| Maximum tapping tooth diameter of the secondary spindle | M6 | ||
| Electric spindle | Maximum drilling diameter of the side milling power head | φ10mm | |
| Side milling power head maximum tapping tooth diameter | M8 | ||
| fast headstock | Power of main and sub-axes | 5.5KW | 8.2KW |
| Maximum rotation speed of the main and secondary shaft | 8000r/min | ||
| Maximum mobility | Sink-type activity guide set itinerary | 220mm | |
| No guide (optional) | 360mm | ||
| cutter | Number of knives | 7 put 16x16mm | |
| Side power tool | 5 with an ER20 power cutter | ||
| Maximum rotation speed of the power head | 5500r/min | ||
| Spindle end tool | 4 ER16 fixed tools plus 3 ER20 power tools | ||
| Secondary spindle end face cutting tool | 5 ER16 fixed tools plus 8 ER16 power tools | ||
| Machine tool appearance | Size (length, width and height) | 2700x1450x1800mm | |
| Machine tool weight | weight | 3700kg | |
