HY-D58 Double-Sided Dust Removal Automatic Screen Printing Machine Transfer Paper Label Packing Silk Screen Printer Machinery

Product Description

Description: Shijiazhuang shine machinery technology co., ltd. HY-D58 improved double-sided dust-removing camera with independent intellectual property rights. The automatic screen printing machine is an upgraded model of dust-removal automatic machine. The thickness of feeding is increased and the loading is reduced. Frequency; the printing material can be dedusted again after the platform is adsorbed to ensure the dust removal effect; the whole machine realizes automatic sub-sheet, dust removal, static electricity, automatic feeding, automatic alignment, automatic automatic operation of the robot automatic feeding, and automatic materialless Shutdown function
Increase the grating system to further ensure safe operation.
The camera-assisted screen of this unit is equipped with a positioning system that can zoom in and take a positioning mark on the screen plate and store it in the camera and display it on the display. When installing the screen version, as long as the magnified positioning mark of the installed screen is coincident with the positioning mark stored by the camera, the screen version can be adjusted without trial printing, and the screen version can be easily installed by the novice.
This model has shortened adjustment cycle, improved printing speed, improved authenticity rate and reduced overall cost. It is very suitable for small batch and multi-variety production, especially suitable for electronic products industry with high printing quality requirements.
Printing speed 800 sheets / hour, repeat positioning accuracy is less than 0.05mm
Printing technical parameters:

Model	HY-D57	HY-D58
Max. Printing Size	500×650mm	500×800mm
Printing Speed	800pcs/h	800pcs/h
Max.Screen Frame Size	750×1030mm	750×1230
Print Thickness	0-1mm	0-1mm
Printing Table Size	590×860mm	590×1060mm
Repeated Positioning Accuracy	<0.02mm	<0.02mm
Squeegee Skewness	0-30º	0-30º
Screen Vertical And Horizontal Adjustment	±5mm	±5mm
Power Supply	3N-50Hz 380V 3KW	3N-50Hz 380V 3KW
Air Source Pressure	0.4-0.6MPa	0.4-0.6MPa
Overall Dimensions	L2800×W1900×H1850(mm)	L3000×W1900×H1850(mm)
Weight	1200kg	1320kg

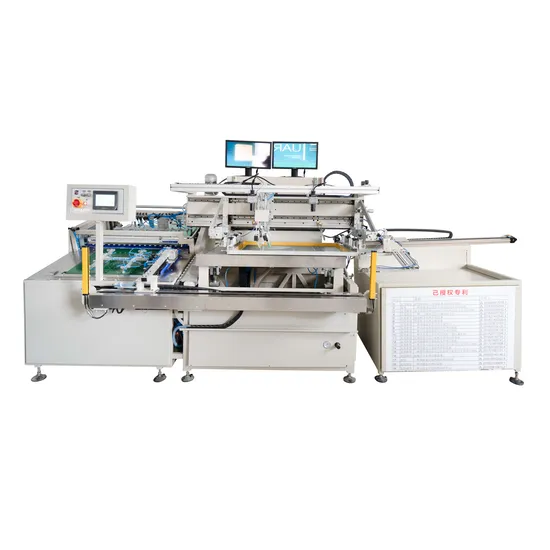

Machine Photos:
