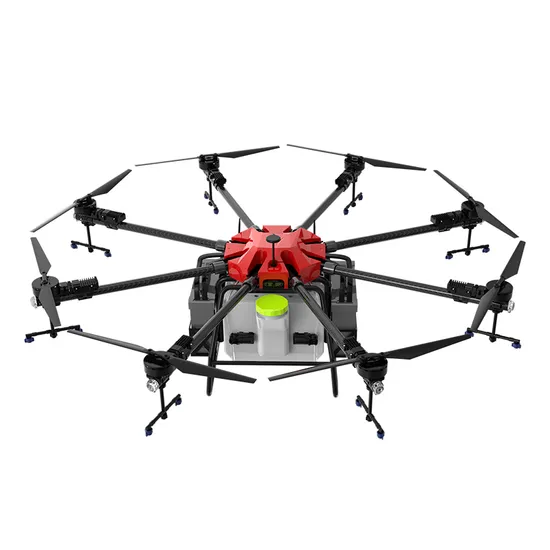

72L Agriculture Fumigation Crop Drone Sprayer for Vegetables Fruit Trees with 42000mAh*2 Lipo Batteries

Product Description

72kg payload agricultural sprayers commercial drones
- OEM & ODM Service - Product Description
Large capacity, large size, great success
The capacity is increased to 72kg and the flight time reaches 25 minutes in no-load mode.In payload mode, it travels at 10 meters per second.Spray at a rate of 8-15L/min.
The control system adopts agricultural professional controller, the specialized system provides excellent performance support.Can be selected with fertilizer kit, a machine multi-purpose, reduce the cost of use.
The performance of the whole machine is optimized, and the hidden circuit is designed to prolong the service life of components and reduce after-sales problems.
Product Specifications

Model	D72L-8
Product material	Aviation carbon fiber + aviation aluminum
Product extended size	3920mm*3920mm*930mm
Product folding size	1050mm*900mm*2000mm
Packaging size	2020*1060*950mm
Maximum takeoff weight	147KG
Aircraft weight	52KG (Excluding Battery)
Pesticide Barrel	72L
Flight altitude	≤30 meters
Fly time(unloaded)	20~25 minutes
Fly time(loaded)	6~10minutes
Aircraft life span	≥10 years
Spray width	8-15 meters
Flight speed	1-10 m / sec
Hovering in the air	Hovering in any direction
Spray flow	8-15L/min
Spray system	Imported high pressure anti-floating atomizing nozzle
Atomization point size	60~500μm
Fly control	Industrial Version GPS and Controller
Spray efficiency	≥28 hectares / hour
Safe takeoff and landing wind speed	≤5
Motor speed	5000rpm
Power system	60.9 V power polymer computer battery
Charger	AC Input 100-240V
Lithium-polymer battery	42000mAh*2

Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.4. Modular design of functional components, easy maintenance and upgrade.5. Using intelligent plug-in battery6. Use quick-plug medicine barrel7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.8. Wear the case, optimize the whole machine, and hide the medicine circuit.9. 7075 aviation aluminum (high grade) is used for the folding part.10. Alternating spraying function, the spray head can be switched independently.11. The arm can be quickly disassembled.
Don't puncture the battery. If the battery pack is drummed, there is a safety hazard. Especially when charging, the drum pack should be stopped immediately and the battery should be moved to a safe place.
