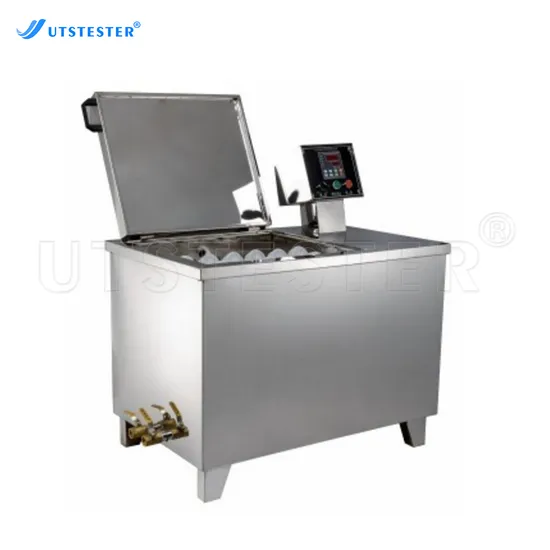

Textile Testing Equipment Sample Rotary Dyeing Machine

Product Description

Product Description
Widely used in textile, printing and dyeing, chemical and scientific research institutions and other industries.It is mainly used for testing dyeing and color fastness of various natural fabrics, chemical fiber fabrics, cotton fabrics and blended fabrics at room temperature.
Feature
1) the machine is made of SUS304L stainless steel mirror plate, with beautiful appearance and reasonable structure.
2) the card cup device adopts high-quality 304 stainless steel spring, and can be used for sample testing with flasks of different specifications, which is convenient and fast to operate.
3) the use of high-performance stainless steel electric heater, pipe diameter of 13mm, high efficiency, long life, safe use.
4) equipped with high-performance programmable computer temperature control system, which can compile and store ten processes, and each process can be programmed in ten steps;The heating rate and holding time can be programmed, and the whole process flow can be controlled automatically.
5) PT100 temperature probe produced by DTC is equipped with high temperature measurement accuracy and long service life.
6) stepless speed regulation transmission motor, stepless speed regulation can be carried out, the latest improved operation system makes the whole machine run very stable, low noise to 40 db or less.
7) the number and volume of test cups can be customized according to customers' needs (the maximum beaker capacity is 500ml).
Product Presentation
Product Parameters

Model	D012A	D012B
Beakers	24	24
Beaker material	250cc plastic beaker	300cc stainless steel beaker
Heating power	3 x 3KW
Heating medium	Water
Maximum temperature	Room temp. To 99ºC
Running mode	Sample beakers vertically rotate beaker gasket speed is 40 rpm
Temperature controlling accuracy	0.1ºC
Liquor ratio	1:5-1:20
Heating mode	Electric heating tube
Cups volume	150CC, 250CC, 300CC, 450CC, 500CC, Optional
Drive system	Smooth start, light load, low noise.Equipped with aluminum motor and reducer to achieve good heat dissipation effect
Power supply	AC, 380V, 50HZ
Dimension	960*590*940mm (L x W x H)
Weight	136kg

More Products
Company Profile
Our Exhibition
Our Customers
Our Advantages
FAQ
Q: How is your service?
- All of test devices will be calibrated and debugged before delivery to guaranty the quality.
- Our professional after-sale team will help you solving any problem within 24 hours* 7 days by emails or videos
- English operation manual and operation video will guide you how to use it.
- On-site machine training & installation can be provided with certain charges.
Q: What's your warranty period? A.12 months. In case of product problems, we provide needed spares parts for free during the warranty (exclude consumables and man-made damages)
Q: What's the payment term?
A: Usually TT, L/C are available. For others, please contact with us for negotiation.
Q: What's your lead time? A.We have professional production line and stuff whom can make a nice quality in a short time. Usually, within 5-25 days is ok, which is based on the stock status.
Q: Are you able to provide a ISO 17025 calibration certificate?
A: Yes, we generally provide two calibration certificates(optional).
• ISO 17025 certificate provided by a third party inspection company with charges.
• Calibration certificate provided by UTS without charges.
Q: Can you send report of fumigation report?
A: Our packing is composite board, not log, so it do not need fumigation treatment.
