Laser Welding Machine High Precision Fiber Laser Welding Machine with CCD Monitor

Product Description

Product Description

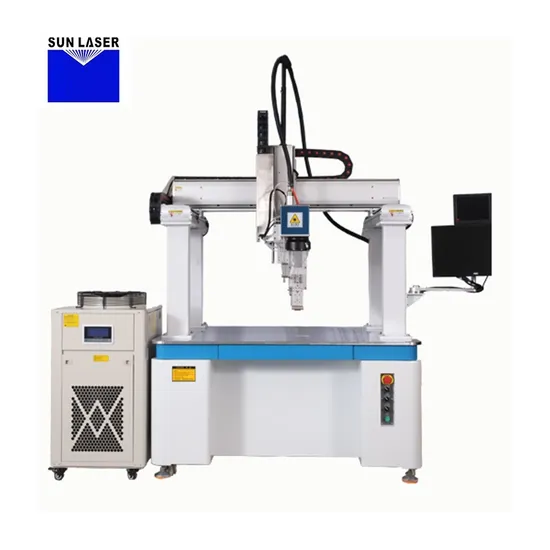

Gantry galvanometer laser welding machine is suitable for precision welding of lithium battery packs and power batteries. The integrated design and large workbench can realize the welding of multiple products at the same time. It has fast welding speed and high precision, and can cope with various complex welding needs. It can weld fine microelectronic components, integrated circuit leads and other precision parts. For example, mobile phone batteries, lithium batteries, electronic components, sensors, tungsten wires, aluminum alloys, laptop computer shells, electrical accessories, filters, nozzles, zinc alloy crafts, etc. As an excellent choice for lithium battery welding, the gantry galvanometer laser welding machine has won the trust and praise of users for its high efficiency, stability and precision.
Product Parameters

Parameter/Model	SWB1000	SWB2000	SWB3000	SWB4000	SWB6000
Laser wavelength	1080nm
Laser power	1000w	2000w	3000w	4000w	6000w
Beam quality	<1.4M²
Laserpower adjustment range	1-100%
Welding mode	CW/PWM
Power stability	≤3%
Focal length	F=180mm
Repeatability	±0.01mm
CCD positioning accuracy	0.01mm(Optional)
Welding range	X-axis 500mm
	Y-axis 300mm
	Z-axis 500mm
Ambient temperature	5-45ºC
Cooling system	External water cooling
Electricity demand	380V/50Hz
Machine size(LxWxH)	1400mm*1200mm*2000mm/1600mm*1400mm*2000mm

Sample Example
Application Areas
New energy lithium battery industry.
In the manufacturing process of new energy lithium batteries, laser welding machines can be used to weld battery cells, tabs, shells and other parts. Compared with traditional welding methods, laser welding has the advantages of fast welding speed, high weld quality, small heat-affected zone, etc., which can improve the performance and safety of lithium batteries.
Automotive Manufacturing.
Laser welding machines play an important role in the automotive manufacturing industry and are mainly used for welding body structures, parts, and powertrains. Their high-speed, high-quality welding features can improve the structural strength and safety of the car, while reducing vehicle weight and helping to improve fuel efficiency.
Aerospace.
In the aerospace field, laser welding technology plays a key role and is used in the manufacture of key parts such as aircraft structures and engine components. It can ensure the strength and toughness of welded joints and meet the high reliability requirements of the aerospace field.
Metal processing industry.
Laser welding equipment can be used to weld various metal materials, such as steel, aluminum alloy, etc. Laser welding can achieve welding of complex shapes and improve welding efficiency and quality.
Medical Device Manufacturing.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Certificate Authentication
Team and Exhibition
Our business partner
Packing and shipping
FAQ
Q1. What materials can be welded by this laser welding machine? A1: This laser welding machine used to weld metal materials and batteries. If you are not sure whether your material can be welded,you can provide your welding material details to us and we provide best solutions for you. Also we can do the welding test for you. Q2: After i pay the deposit, how long you can delivery the machine for us?
A2: For one set machine order, we can make delivery within 10 working days. If need to customize the fixture for you, the delivery time around 14 working days.
Q3: If the machine have problems in my site, how should we solve it?
A3: If the machine have any problems in your site, please contact with us immediately and not trying to do anything by yourself.Our engineer will video call you and help you to check the problems and guide you what to do step by step.

Q4: This machine with how many years warranty period?
A4: The machine laser source with 2 years warranty period. The whole body with 1 year warranty period.

Q5: Do you accept credit card payment?
A5: Yes, besides credit card payment, we also accept T/T, western union, paypal, Alipay and L/C, etc.
