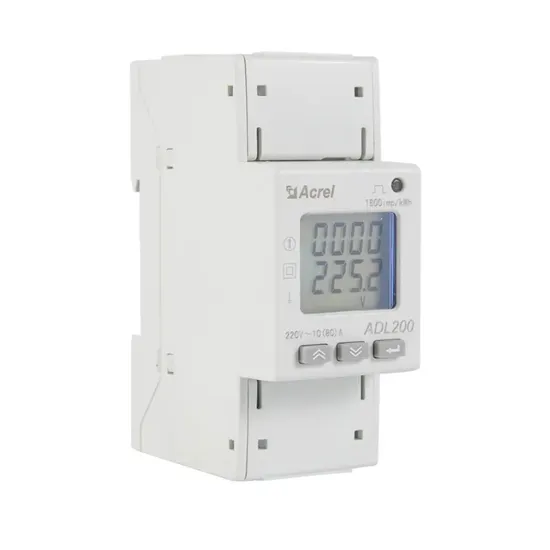

Smart Single Phase Multifunction Kilowatt Hour Kwh Energy Meter Power Meter 10 (80) a 220V 50Hz Tariff Load Control
| US$27.10 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ADL200
Display
LCD
Installation
DIN Rail Mounting
Usage
Multi-Functional Energy Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment
3 Phases 3 Wires(4 Wires)
Type
Energy Meter
Certification
RoHS, CE
Customized
Customized
Tariff
Multi-Tariff
Communication
RS485(Modbus-RTU)
Input Current
3X1(6)a 3X10(80)a
Accuracy Class
Active Energy 0.5 Class
Working Temperature
-25.0=~+55.0
Relative Humidity
No More Than 95%
Transport Package
Carton
Specification
ADL400
Trademark
Acrel
Origin
China
Production Capacity
50000
Packaging & Delivery
Package Size
17.00cm * 15.00cm * 12.00cm
Package Gross Weight
0.500kg
Product Description
Product DescriptionADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 31st harmonic content and the total harmonic content. It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electricity meter in the IEC62053-21standards.
Function Description
| Function | Function description | Function provide |
| Measurement of kWh | Active kWh (positive and negative) | √ |
| Reactive kWh (positive and negative) | √ | |
| A. B, C split phase positive active energy | √ | |
| Measurement of electrical parameters | U,I,P,Q,S,PF,F | √ |
| Measurement of harmonics | 2~31ST Voltage and current harmonic | √ |
| Display | 12 bits section LCD display, background light | √ |
| Key programming | 3 keys to communication and set parameters | √ |
| Pulse output | Active pulse output | √ |
| Multi-tariff and functions | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | By negotiation |
| Max demand and occurrence time | By negotiation | |
| Frozen data on last 48 months, last 90days | By negotiation | |
| Date, time | By negotiation | |
| Communication | Communication interface: RS485, Communication protocol: MODBUS-RTU | √ |
| Name | Parameters for 3 phase 3 wires, 3 phase 4 wires |
| Voltage | 3×100V,3×380V,3×57.7/100V,3×220/380V |
| Consumption | <10VA(Single phase) |
| Impedance | >2MΩ |
| Accuracy class(woltage) | Error±0.2% |
| Input current | 3×1(6)A, 3×10(80)A |
| Consumption | <1VA Single phase rated current |
| Accuracy class(current) | Error±0.2% |
| Power | Active, reactive, apparent power, error±0.5℅ |
| Frequency | 45~65Hz,Error±0.2% |
| Energy | Active energy(Accuracy class: 0.5) reactive energy(Accuracy class 2) |
| Clock | ≤0.5s/d |
| Energy pulse output | 1 active photocoupler output |
| Width of pulse | 80±20ms |
| Pulse constant | 400imp/kWh,10000imp/kWh(Correspond with the basic current) |
| Interface and communication protocol | RS485:Modbus RTU |
| Communication address | Modbus RTU:1~ 247 |
| Baud rate | 1200bps~19200bps |
| working temperature | -25ºC~+55ºC |
| Relative humidity | ≤95℅(No condensation) |
CE-MID(B module)
CE-MID(D module)
EAC declaration
Network Topology Company profile
More technical questions, please contact me!
Waiting for your information!
