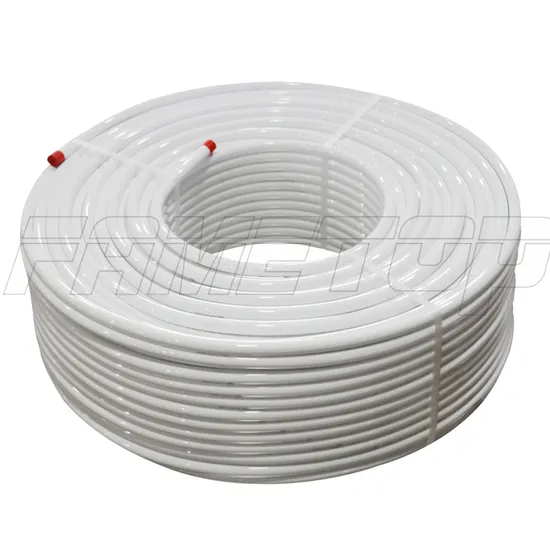

Butt-Welded Pex-Al-Pex Multilayer/Composite Pipe Under German Standard
| US$0.25-0.30 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
1216mm-2632mm
Installation and Connection
Fitting
Technology of Plastic Composite Pipe
Hot Dip
Base Pipe of Plastic Composite Pipe
Plastic Pipe
Internal Coating Materials of Plastic Composite Pipe
PE
Plastic Composite Pipe Coating Form
Glue
Plastic Composite Pipe Model
Pex-Al-Pex
Steel Skeleton PE Pipe Use
Municipal
Aluminium Plastic Compound Pipe Use
Water Distribution Pipe in Building
Steel Plastic Composite Pipe Model
Pex-Al-Pex
Aluminium Plastic Compound Pipe Material
Crosslinked Polyethylene Aluminum Composite Pipe
Color
White, Red, Blue, Yellow or as Customerized
Standard
German Standard
Transport Package
by Kraft Paper, Carton, or Nylon Bag
Specification
1216 1418 1620 2025 2026 2632
Trademark
FameTop
Origin
China
HS Code
39173900
Production Capacity
20000000
Product Description
Butt-welded Pex-Al-Pex Pipe Under German StandardStandard:ISO21003-2;
With CE certification;
Color:White,Red,Blue,Orange or as customerized;
Length:100m/200m or as customerized;
Packing:By carton,Kraft Paper,or White Film;
Working temperarure: Max 95ºC
Working pressure:10bars;
Service life: Over 50 years;
APPLICAITON:
1) Hot water and cold water pipe for production and domestic use;
2) Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3) Pipe used for solar energy water heater;
4) Coal gas and natural gas pipe;
5) Drinking water within a certain district, pipe used for reclaimed water project;
6) Piped used for central air conditioner, fan coil;
7) Industrial pipes used for oil transportation and cooling fluid;
8) Pipes used for sleeve of wire or cable;
9) Pipe/tube used for oxygen input in hospital;
SPECIFICATION
| Norminal(mm) | 14 | 16 | 18 | 20 | 25 | 26 | 32 | |
| Outer(mm) | 14.0 | 16.0 | 18.0 | 20.0 | 25.0 | 26.0 | 32.0 | |
| Inner(mm) | 10.0 | 12.0 | 14.0 | 16.0 | 20.0 | 20.0 | 26.0 | |
| Thickness(mm) | Wall | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 |
| Alu | 0.19 | 0.21 | 0.23 | 0.25 | 0.25 | 0.25 | 0.3 | |
| Unit Weight(g/m) | 100 | 110 | 120 | 140 | 210 | 230 | 310 | |
| Standard Length(m/coil) | 100/200 | 100/200 | 100/200 | 100/200 | 50 | 50 | 50 | |
| CBM/Coil | 0.04/0.06 | 0.044/0.083 | 0.064/0.104 | 0.109/0.064 | 0.101 | 0.11 | 0.125 | |
| Color | White/Red/Yellow/Blue/Black/or as customerized | |||||||
| Remarks:Aluminum thickness can be made as customerized | ||||||||
