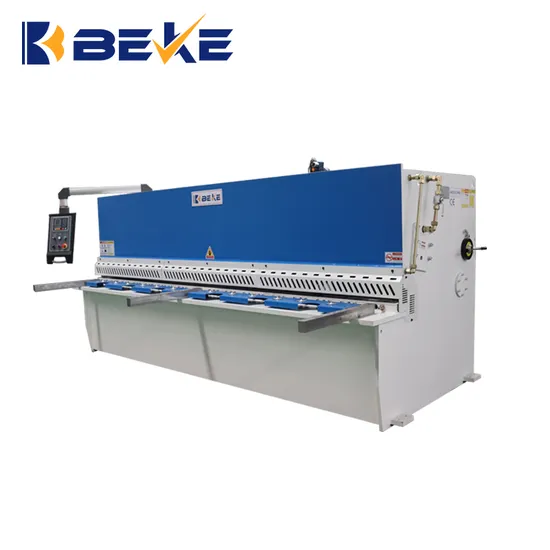

QC12K Series Swing Beam Cutting Machine for Shearing 6mm Thickness
Basic Info.
Model NO.
QC12K 6X3200
Certification
CE, ISO 9001:2000
Condition
New
Warranty
2 Years
Model
QC12K 6X3200
Main Motor
Germany Siemens
Hydraulic Valve
Germany Bosch-Rexroth
Oil Pump
American Sunny
Ball Screw and Linear Guide
China Taiwan Hiwin
Transport Package
Wooden Box or Container Directly
Specification
3840x1610x1620mm
Trademark
BEKE
Origin
China
HS Code
8462490000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| ITEM | VALUE |
| Model | QC12K 6X3200 |
| Max cutting thickness | 6mm |
| Max cutting width | 3200mm |
| Cutting angle | 1.5° |
| Backguage distance | 500mm |
| Throat depth | 120mm |
| Main motor power | 7.5kw |
| Weight | 6000kg |
| Size | 3840x1610x1620mm |
| BEKE QC12K Series NC shearing machine is in a circular arc movement mode, and the tool holder body of the pendulum shear is arc-shaped, and the point of the arc is used to ensure the straightness of the sheared material. If the customer wants to save costs, the precision of the shearing plate is very low, and the thickness of the shearing plate is relatively thin (usually less than 8mm is recommended), we recommend the customer to use this type of shearing machine. | |
