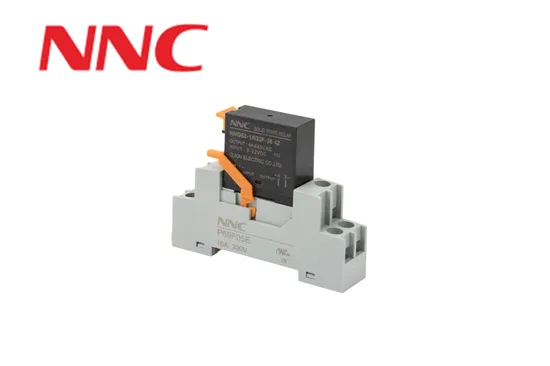

Solid State Relay G3r-I/O Series NNG62 NNG63 Industrial Air-Cooling Series SSR
Basic Info.
Model NO.
NNG63
Phase
1
Electricity Type
DC to AC DC to DC
Number of Pole
ssr
Load
High Power Relay
Protective Characteristics
Sealed Relay
Size
Miniature
Type
Electric Parameter Relay
Load Current
1A 2A 3A 4A 5A
Control Voltage
3-32VDC
Load Voltage
12-200VDC
Terminal
Plug-in
Transport Package
Carton
Specification
29mm*12.6mm*28mm
Trademark
NNC
Origin
China
HS Code
8536490000
Production Capacity
50000PCS/Week
Product Description
Specification
| Dimension | 30.8mm*12.6mm*33mm | |
| Model | NNG63-1/032F-22,38 1-5A | NNG63-0/032F-20 1-5A |
| Description | Single phase( Input DC, Output AC ) | Single phase( Input DC, Output DC ) |
| Control voltage | 3-32VDC | |
| Control current | 5-20mA | |
| Turn-on voltage | 3VDC | |
| Turn-off voltage | 1VDC | |
| Reverse voltage | 32VDC | |
| Load voltage | 22: 24-240VAC 38: 44-440VAC | 20: 12-200VDC |
| Load current | 1A, 2A,3A,4A,5A | |
| Instant voltage | 22: 600VAC 38: 900VAC | 20: 400VDC |
| On-state voltage drop | <1.6VAC | <1.2VDC |
| On-off time | ≤10mS | ≤5mS |
| Off-state Leakage current | ≤10mA | ≤10mA |
| Dielectric strength | ≥1500VAC | |
| Insulation resistance | 500mΩ(500VDC testing) | |
| Ambient temperature | Operating:-30°C ~ 80°C; Storage:-30°C ~ 100°C | |
| Indicate methods | / | |
| Installation | Plug-in | |
| Weight | 1A, 2A,3A,4A: Approx. 18g 5g: Approx. 24g | |
| Packing | 1A, 2A,3A,4A: 400PCS/Carton, G.W.: 8.65KG, N.W.: 7.65KG, Dimension(cm): 35*24.5*22 5A: 400PCS/Carton, G.W.: 11.05KG, N.W.: 10.05KG, Dimension(cm): 35*24.5*22 | |
Wiring Dragram
NNG63-0/032F-20 1-4A NNG63-0/032F-20 5A
NNG63-1/032F-22, 38 1-4A NNG63-0/032F-22, 38 5A
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
