Plastic Bottle Injection Machine (ZS-3800A)

Product Description

Plastic Bottle Injection Machine
Save electricity 60%, Reduce cycle time, High precision & repeatability, it could make all kind
We are the manufacturer of good quality Plastic bottle injection machine
We can make pet preform and cap production machines for different sizes and weights.
Different model of machine with different production capacity, pls contact us for more details and professional services.

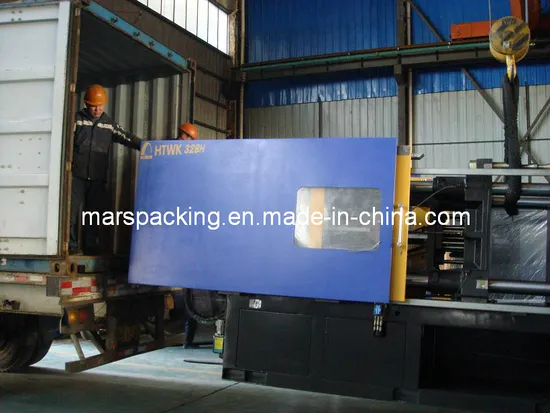

Above is the 208ton injection machine making PET preforms.
Some of the important features:
Clamping system: Faster response, steable and high rigidity
Injection system: Accurate and flexible, lower rejection rate
Control system: Computer and simple operation, molding data memory system
Power system: Energy saving, high efficient and precise
Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company
Other Information
Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
Visiable lubrication system: On time clean, avoid cast steel parts abrasion and broken.
Oil treasure: Filter of hydraulic oil, good for pump and valves
Long working life: Imported spare parts and updated version
Aftersales service: Professional & timely
Delivery time: 30-60 days
Port of dispatch: Shanghai

INJECTION UNIT		Unit	ZS-3800A
			A	B	C
	Screw Diameter	Mm	45	50	55
	Screw L/D Ratio	L/D	22.2	20	18.2
	Short Size	Cm3	381	471	569
	Injection weight	G	347	428	518
		oz	12.2	15.1	18.2
	Injection Rate	g/s	170	210	254
	Plasticizing capacity	g/s	19	23.2	28.7
	Injection Pressure	Mpa	229	186	154
	Screw Speed	Rpm	0-190
	Injection Sroke	mm	240
CLAMPING UNIT	Clamp Force	KN	2080
	Space Between Tie Bars	mm	510*510
	Toggle Stroke	mm	500
	Max. Mold Height	mm	530
	Min. Mold Height	mm	200
	Ejector Stroke	mm	150
	Ejector Tonnage	KN	62
	Ejector Number	P	5
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	18.5
	Heater Power	Kw	14.25
	Machine Dimension(L*W*H)	M	53*1.4*1.95
	Machine Weight	T	6.9
	Oil Tank Capacity	L	380
	Hopper Volume	Kg	50
