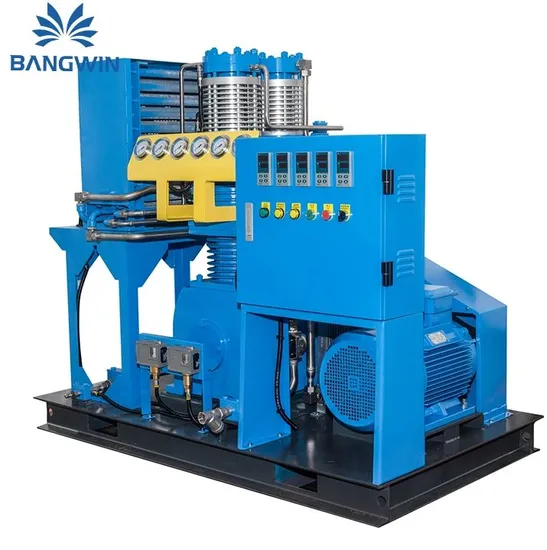

Bw High-Pressure Oxygen Compressors – 15m³ & 30m³ Models, 50 Bar for Cylinder Filling, Industrial & Medical Use

Product Description

Product Name	Oil-Free Booster Compressor
Model No	BW-3/5/10/15/20/30...
Inlet Pressure	0.4Mpa( G )
Exhaust Pressure	150/200Mpa( G )
Type	High Pressure Oil Free
Accessories	Filling Manifold, Piston ring, Etc

Oilless High Pressure O2 Compressor Specification
NO	Volume	Inlet pressure	Outlet pressure	Type	Cooling type
1	1-3m³	0.3-0.4MPa	15MPa	2 lines 4 stages vertical type	Wind
2	4-12m³	0.3-0.4MPa	15MPa	2 lines 4 stages vertical type	Wind
3	13-40m³	0.3-0.4MPa	15MPa	3 lines 3 stages W type	Water
4	13-60m³	0.2-0.4MPa	15MPa	2 lines 4 stages vertical type	Water
5	40-80m³	0.2-0.4MPa	15MPa	4 lines 4 stages S type	Water
6	80-120m³	0.2-0.4MPa	15MPa	4 lines 4 stages S type	Water

If you have compressor inquiry please tell us follows information when you send inquiry: *Compressor working medium: If single gas ,how many purity ? if mixed gas , what's gas content lit ? *Suction pressure(gauge pressure):_____bar *Exhaust pressure(gauge pressure):_____bar *Flow rate per hour for compressor: _____Nm³/h Compressor gas suction temperature:_____ºC Compressor working hours per day :_____hours Compressor working site altitude :_____m Environment temperature : _____ºC Has cooling water in the site or not ?______ Voltage and frequency for three phase :____________ Do not has water vapor or H2S in the gas ?______ Application for compressor?__________
