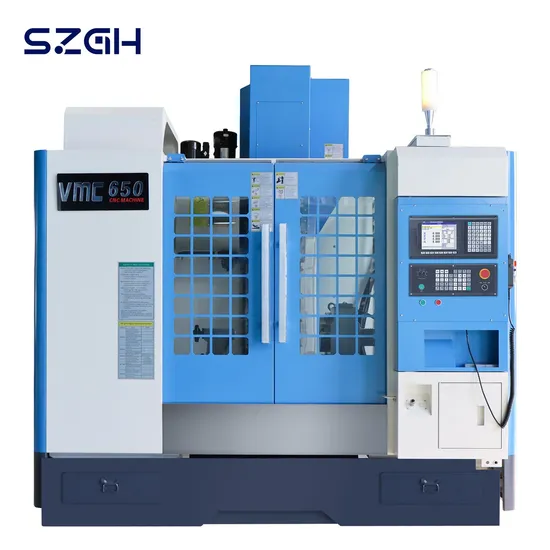

China Szgh 3 Axis CNC Vmc650 Vertical Machining Centre

Product Description

Product Description
China SZGH 3 Axis CNC Vmc650 Vertical Machining Centre
Spindle servo : SZGH10-2-35-5.5/7.5-4-1500(5.5Kw,35NM,max speed 8000RPM,rated speed1500RPM 380V)
VMC650: 650*400*500mm
1) SZGH 130 Servo Motor Driver 3.8KW,15NM;
2) SZGH 3 Axis CNC Milling Controller Center;
3) 7.5KW Spindle Servo Motor ;
4)Arm Type ATC-16 Tools
CNC milling machinery
SZGH-CNC1000MDc-4(E panel+MPG+I/O board );
X&Y axis: SZGH-13260CC(H)(2.6kw, 10NM, 2500rpm);
Z axis : SZGH-13380CC(H)-T (3.8kw,15NM,2500rpm); Detailed Photos
The main features are as below: 1.The struction of the precision being connected with automatic lubrication device.2.Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.3.The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure4.Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping5.All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function. Enhance machining accuracy.6.Taiwan spindle/ball screw/ bearing is available.7.X/Y/Z linear guide way is available.8.Ultimate 10000rpm spindle speed is available9.Portable hand wheel10.OEM or ODM is available.11.Customized color and voltage or LOGO.12.China top one quality and good after sale service.
Product Parameters
FEATURES OF MATCHED CNC CONTROLLER (1)2-5 Axis Fully English Type CNC lathe controller;
(2)800x600 8.4 inch real color LCD displayer;
(3.)Electric Turret & Binary code turret,Max: 99 pcs tools;
(4)Support ATC , Macro function and PLC function;
(5.)Max speed is 60m/min, feeding speed is 24m/min;
(6.)Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing;
(7.)High anti-jamming switch power(100V-240VAC 50Hz/60Hz→ 24VDC);
(8.)64MB Memory,56M user store room;
(9.)With USB interface it supports file operation in flash disk,system confiquration and software upgrade
(10.)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V.
11.)32 bits ARM microprocessor+FPGA Technology;
(12,)Basic 1/0:36X36, can be edited freely;
(13,)Cutter offset :
Company Profile
FAQ
Q1. Who are we?
A1: We are based in Guangdong, which provides CNC total solutions& cnc lathe machine&milling machine
technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
Q2. How can we guarantee the quality?
A2: Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
Q3. How does your CNC machine work with my production schedule?
A3: Our machine tools use our complete set of CNC systems, and we can also change the corresponding configuration according to your
needs, such as turrets, kits, etc., to solve the trouble of debugging and refitting after you receive the goods in advance.
Q4. What services can we provide?
A4: 1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean, Italian, and so on.
Q5.What is control mode for feeding Axes?
A5: Our Normal CNC support Pulse+Direction signals for feeding axes drivers; Our Modbus CNC support EtherCAT /Powerlink modbus for feeding axes drivers.
Q6.What is control mode for spindle axes?
A6: There are dual analog voltage outputs(0~10V) for speed control of spindle axis. Our Modbus CNC also support Pulse speed spindle, also can use pulse to control speed of spindle servo system.

Q7.Does your cnc support ATC function?
A7: Yes, our CNC lathe system can support most of turret, like Eletric turret,servo turret,counting turret,etc; We can edit special macro program & plc for special turrets also; And our CNC milling system support Linear type , umbrella type, arm type, turret type tool magazines.
Q8.Does your cnc support booting logo exchange?
A8: Yes, no problem.
