Customized Steel Billet Lifting Tong Mechanical Steel Plate Slab Lifter Slab Clamp
Basic Info.
Model NO.
clamp
Type
Clamp
Material
Alloy Steel
Lifting Capacity
>6T
Fixed Form
Customized
Lifting Eye Type
Customized
Rope Core Type
Customized
Power Source
Electric
Shape
Customized
Certification
CE
Sling Color
Customized
Weight (Kg)
1000
Condition
New
Function
Heavy Material Transport
Product Name
Steel Lifting Clamp
Showroom Location
None
Feature
Durable
Supply Ability
500 Set/Sets Per Month
Transport Package
Wooden Case
Specification
Customized
Trademark
KE
Origin
Henan China
Production Capacity
500 Set/Sets Per Month
Product Description

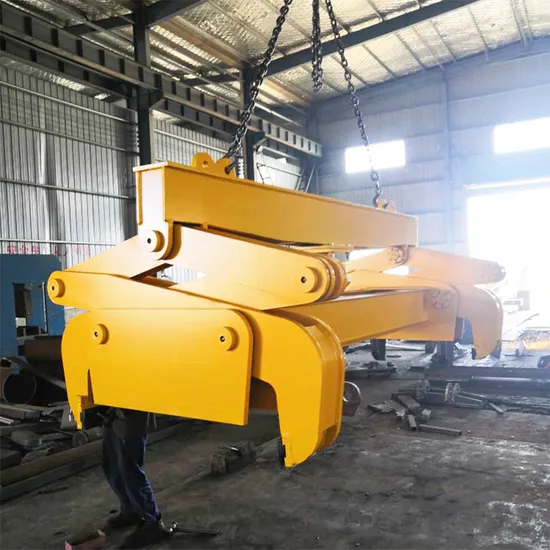

Product DisplaySteel Lifting Clamp
The steel billet lifting fixture uses the lever principle to lift the steel billet, without the need for a power source. It is positioned and locked by a rotating automatic locking device or mechanical automatic locking device. It can lift single-layer and multi-layer steel billets and has the characteristic of flexible operation. The billet clamp mainly consists of seven parts: a lifting beam, a connecting rod, an automatic locking device, a synchronizer, a clamp arm, a support plate, and a clamp tooth.
| Types | C-type/Rotating electric and customized | |||
| Material | Steel plank. | |||
| Combination | Reducer,Rotary motor,Torque limiter,Cable,Low-voltage electrical fittings,Terminal,The aviation plug,etc. | |||
| Size | Customized | |||
| Color | Yellow/Customized | |||
| Drawing Service | Yes | | ||
| Capacity | 5T-40T | |||
Product Overview
We still have other types Steel Lifting Clamp for you to choose, if you want to know more details please contact us!
Main Feature
1.Billet( plate) lifter is used for lifting steel billet, aluminum plate &copperplate. 2.Clamp force is produced by lever mechanism through gravity of slab. 3.The opening and close of clamp is controlled by auto latch mechanism. 4.Single or multiple slabs can be lifted. 5.Single in structure, convenient and agile in usage. 6.The wide range of available square billet is 100mm-400mm. 7.1 - 60t billet handing capacity depending on the size of the lifter. 8.Support customized steel plate lifting clamp.
