Fabrics Air Permeability Tester with color touch screen Automatically

Product Description

Product Description

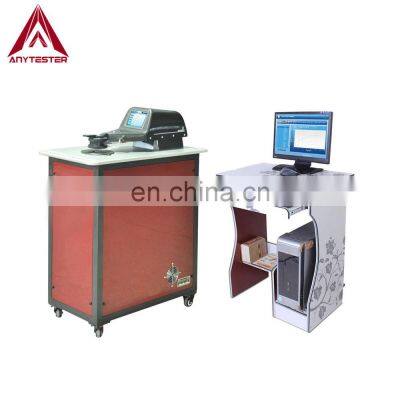

Product DescriptionAT161 Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.StandardISO 9237, 7231, 5636ASTM D737BS5636DIN 53887JIS L1096GB/T 5453, 13764Note: For more standards, please contact usSpecificationModelAT161Measuring range0.8~14000mm/s(L/m2.s)Resolution0.01mm/sMeasuring accuracy≤±1%Sample thickness range≤ 8mm Clamping methodPneumatic clamping, automatically start the test after press the clampSuction volume adjustmentAuto dynamic adjustment by feedback dataSample test area20cm2Test pressure1~2400PaData processing capacityMax. 3200 Test unitmm / s, cm3 / cm2 / s, L / dm2 / min, m3 / m2 / min, m3 / m2 / h, dm3 / s, cfmPower supplyAC220V±10%, 50HzPower1500wDimensions550×900×1200mm （L×W×H ）Weight105kgDetails & Features★ The first successful establishment metering transfer system of permeability test based on a mass flow meter, completely solve the problem of breath quality test traceability problem, bring a substantial increase in measurement accuracy;★ With two test method: Quick test (a single test time is less than 30 seconds, the results quickly); Stable test (fan speed increase uniform, reach to set the pressure difference, keep the pressure for a certain time to come to the results, very suitable for some relatively small permeability sample to complete high-precision test)★ Special designed for the large amount of test, can complete a test by just press the clamp, no need other operations, data automatically save, improve the detection efficiency;★ Adopts new technology, high configuration, the whole shell adopts imported metal paint, beautiful appearance, stable performance, easy operation, no special maintenance in the future, low maintenance costs;★ Using high-precision imported micro differential pressure sensor, the measurement results are accurate, reproducible, significantly better than the domestic counterparts production of related products;★ Fully automatic measurement, put sample to specified position, the instrument automatically find the right measurement range, automatic adjustment, accurate measurement;★ Adopt large-screen color touch screen to control the test, can also be used computer control test, the computer can be real-time display pressure - permeability dynamic curve, easy to control product quality, so that R & D personnel more intuitive understanding of sample breathability;★ Pneumatic clamping sample, fully meet the requirements of a variety of materials clamping;★ Adopt self-designed silencer to control the suction fan, to solve noise problems due to large pressure;★ Adopt long arm clamping handle, can measure large samples without cut, greatly improve work efficiency;★ Special aluminum sample table, whole shell with metal coating process, durable and nice appearance, easy to clean;★ Instrument operation is very simple, even inexperienced personnel also can operate freely;★ Chinese and English interface interchangeable;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
