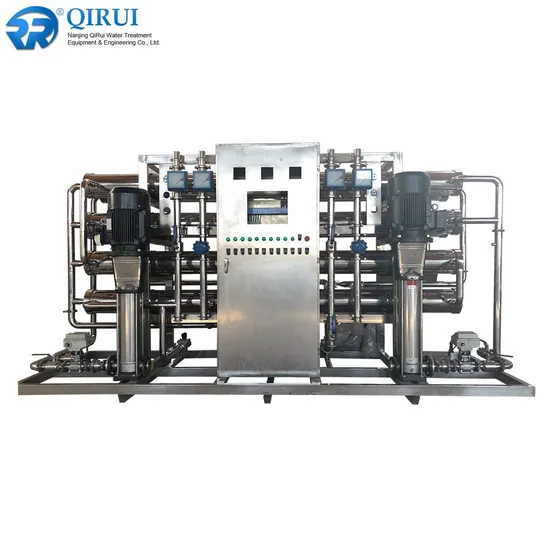

Two Stage RO System Reverse Osmosis Water Treatment Plant Equipment

Product Description

Description:
Reverse osmosis is a kind of membrane separation techniques which was developed in 1980s, it mainly uses the osmosis principle of the semi-permeable membrane, and brings a kind of pressure that opposite to the force in natural osmosis direction in a certain way, then the water in the strong solution osmosis into the thin solution, this is reverse osmosis. The unit which is made up of reverse osmosis components is reverse osmosis unit. It uses the unique principle of reverse osmosis to produce purified water and can reduce inorganic salt, organisms and bacteria in water considerably. It is mainly used for bottled purified water, living water, residential domestic water and far ocean fresh drinking water.
The pre-treatment equipment provided by Qirui Company can be rinsed by the hot water of 85 ºC temperature (if the customers have special requirement, active carbon filter can design as the pure steam washing for sterilization at the most certain), assure and control the index of the microbe. The filtration tank with stainless steel adopts 4mm without pollution glue inside the tank, preventing the inside wall of the stainless steel tank being corrupted.
Features:
1. Applied in the areas where the raw water contains little salt
2. Low total quantity of carbon(organism)
3. Non-contamination emission
4. Simple structure
Brief Process Chart:
Raw Water --- Raw Water Tank --- Raw Water Pump --- Quartz Sand Filter --- Activated Carbon Filter --- Chemical Dosing Device --- Precision Filter --- High Pressure Pump --- Reverse Osmosis Device --- Cleaning Device --- Fresh Water Tank --- Chemical Dosing Device --- Pure Water Tank --- Ultraviolet System --- Water Using Point
Main Technical Parameters:
1. Output Water Flow: 250L/h-100000L/h
2. Working Temperature: 5 - 35 ºC
3. PH Value Range: 3 -10
4. Working Pressure: 0.5 -1.55 MPa Main Technical Data:

Model	Water Output (m3/h)	Minimum Water Intake (m3/h)	Desalination Rate (%)	Temperature of Working Water (ºC)
FSJ41X-0.3XB-2	0.3	1.6	98	5-35
FSJ41X-0.5XB-2	0.5	2.2	98	5-35
FSJ42X-1XB-2	1	2.8	98	5-35
FSJ42R-2XB-2	2	4.1	97	5-35
FSJ43R-3XB-2	3	6.5	97	5-35
FSJ43R-4XB-2	4	7.8	97	5-35
FSJ82R-6XB-2	6	12.5	97	5-35
FSJ82R-8XB-2	8	15	97	5-35
FSJ83R-10XB-2	10	15	97	5-35
FSJ83R-15GB-2	15	31	97	5-35
FSJ84R-20GB-2	20	38	97	5-35
FSJ85R-25GB-2	25	41.25	97	5-35
FSJ86R-30G-2	30	47.5	97	5-35
FSJ86R-50G-2	50	79.5	97	5-35
FSJ86R-100G-2	100	155	97	5-35

Process Flow Chart:
1. Are you a factory?
Yes, we are a factory with more than 18 years' manufacturing experience since our foundation year 2004.
Our factory is in Yangzhou, Jiangsu Province, China.
2. What about the delivery time?
Usually 30~45 working days.
3. The after-sale service
Provide guide videos and online support to help debug machines, and train buyer's related staff to install, operate and maintain the machine. When necessary, we can also send our technician to your factory.
4. If I want to buy a machine, what information do I need to tell you?
a. What kind of source water do you need to purify?
b. Raw water quality analysis report (If no, talk to our foreign trade salesman)
c. Hourly producing capacity requirement. How much liters per hour(L/h)?
d. Working condition
e. Treated-water quality requirement.
5. What kinds of products do you supply?
Multiple Effect Distilled Water Machine
Pure Steam Generator
Reverse Osmosis(RO) Purified Water System
EDI Desalination System
Ultrafiltration(UF) System
Stainless Steel Tank Products
Heat Exchanger
CIP/SIP System
Water Distribution System Process Loop Pipeline
Water Treatment Accessories
