Basic Info.
Machine Material
Carbon Steel
Application
Powder, Viscous Fluid, Granules
Operating type
Continuous Operating
Additional Capabilities
Feeder
Transport Package
Nude Package or Wooden Case
Specification
1.9x1.81x1.37m
Production Capacity
20 Sets/Month
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg
Product Description
Product Description

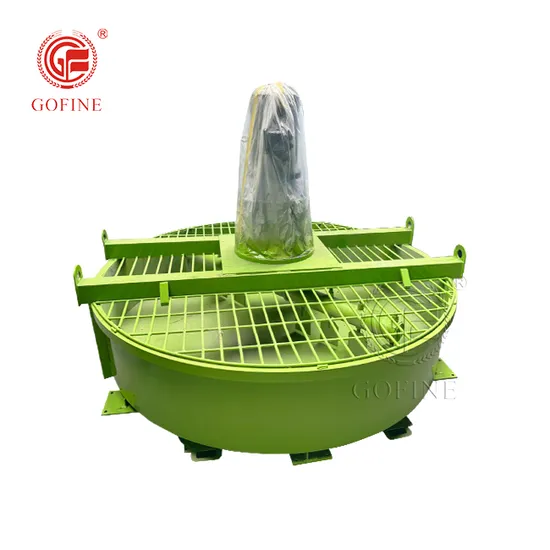

High Efficiency Manual Concrete Blending Mixer Equipment
• Introduce of Pan Mixer Machine
The pan mixer machine is a commonly used solid material conveying, feeding, and mixing equipment. It is used to mix materials of different shapes such as powder, granular, and block evenly, then feed the materials from the bottom of the plate and quantitatively transport them to downstream fertilizer processing equipment or fertilizer production line equipment.
The pan mixer has the characteristics of a small footprint, high mixing rate, and low material residue. It is suitable for mixing compost, compound fertilizer, premixed additives, animal feed, and other materials. • Feature of Pan Mixer Machine
1. High mixing efficiency, uniform stirring
2. Compact structure, small footprint
3. Unloading is convenient and can work continuously
4. The material is wear-resistant and has a long service life
5. Stable operation, low energy consumption and low noise
Note:
Our company has different types of fertilizer blending machines or fertilizer mixing equipment, including the vertical mixer/blender, horizontal mixer, double shaft mixing machine, and BB fertilizer mixer. We can customize a suitable fertilizer mixing machine based on your production needs.
• Work Process of Pan Mixer Machine
The pan mixer is a new type of feeding and mixing equipment, which is composed of a mixing plate, a discharge port, a mixing arm, a rack, a gearbox, a transmission mechanism, etc.
The material enters the inside of the equipment through the feed port and is evenly mixed through the stirring shaft. The minimum gap between the rotor and the housing can be adjusted to close to zero, effectively reducing residual materials. The evenly stirred material is discharged from the lower outlet. It can be used with belt conveyors, granulators, and other related equipment to form a complete organic and inorganic fertilizer production line.
Product Parameters
| Model | Blender | Speed(r/min) | Power(kw) | Production capacity(t/h) | Dimensions(mm) | Quality(kg) |
| Diameter(mm) | Wall height(mm) |
| PJ1600 | 1600 | 400 | 12 | 5.5 | 3-5 | 1612x1612x1368 | 1200 |
| PJ1800 | 1800 | 400 | 10.5 | 7.5 | 4-6 | 1900x1812x1368 | 1400 |
| PJ2200 | 2200 | 500 | 10.5 | 11 | 6-10 | 2300x2216x1503 | 1668 |
| PJ2500 | 2500 | 550 | 9 | 15 | 10-16 | 2600x2516x1653 | 2050 |
Product Details
• Fertilizer Production Line of Pan Mixer Machine
