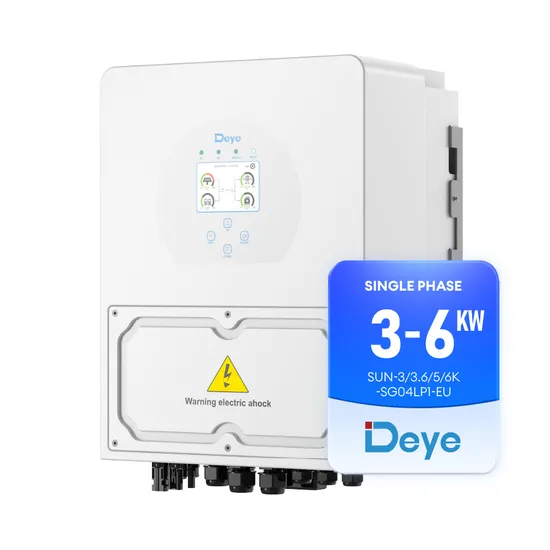

Deye Single Phase Hybrid Inverter 3kw 5kw 6kw Hot Selling off Grid Hybrid Inverter

Product Description

Product Description

Model	SUN-3K-SG04LP1-24-EU	SUN-3K-SG04LP1-EU	SUN-3.6K-SG04LP1-EU	SUN-5K-SG04LP1-EU	SUN-6K-SG04LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	20-30	40-60	40-60	40-60	40-60
Max. Charging Current (A)	140	70	90	120	135
Max. Discharging Current (A)	140	70	90	120	135
Charging Strategy forLi-ion Battery	Self-adaption to BMS
Number of Battery Input	1
PV String Input Data
Max. PV Input Power (W)	3900	3900	4680	6500	7800
Max. PV Input Voltage (V)	500
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Rated PV Input Voltage (V)	370
Max. Operating PV Input Current (A)	13		13+13
Max. Input Short-Circuit Current (A)	17		17+17
No. of MPP Trackers/No. of StringsperMPP Tracker	45292		2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)	3000		3600	5000	6000
Max. AC Input/Output Apparent Power (VA)	3300		3960	5500	6600
Rated AC Input/Output Current (A)	13.6/13		16.4/15.7	22.7/21.7	27.3/26.1
Max. AC Input/Output Current (A)	15/14.3		18/17.2	25/23.9	30/28.7
Max. Continuous AC Passthrough (grid to load) (A)	35				40
Peak Power (off-grid) (W)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5% In
Efficiency
Max. Efficiency	0.976
Euro Efficiency	0.965
MPPTEfficiency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent ProtectionAC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal ProtectionDC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current MonitoringPower Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input SwitchOvervoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC),TYPE II(AC)
Interface
Communication Interface	WIFI, RS485, CAN
General Data
Operating Temperature Range (ºC)	-40 to +60ºC, >45ºC Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise (dB)	<30
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC), OVC III(AC)
Cabinet Size (WxHxD mm)	330×433×229 (Excluding Connectors and Brackets)
Weight (kg)	17
Type of Cooling	Natural Cooling				Intelligent Air Cooling
Warranty	5 Years/10 Yearsthe Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation	IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99,VDE-AR-N 4105
Safety / EMC Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
