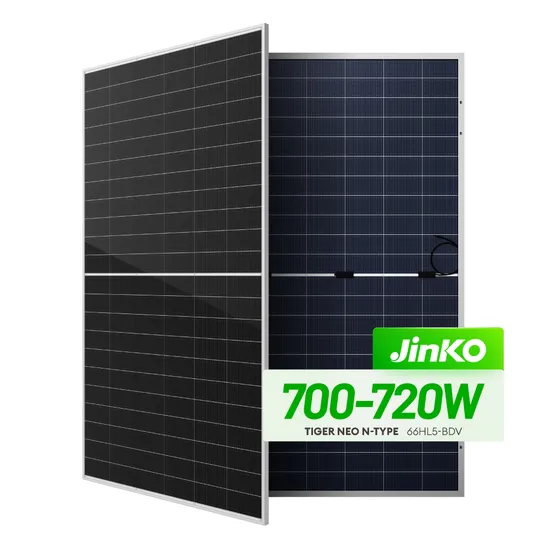

Jinko Wholesale Price Mono Solar Module 700W 705W 710W Tiger Neo N Type High Power Solar Panels

Product Description

Jinko SolarSpecification

Maximum Power - Pmax [Wp]	700	705	710	715	720
Maximum Power Voltage - Vmp [V]	40.42	40.53	40.65	40.77	40.89
Maximum Power Current - Imp [A]	17.32	17.40	17.47	17.54	17.61
Open-circuit Voltage - Voc [V]	48.40	48.56	48.73	48.88	49.04
Short-circuit Current - Isc [A]	18.40	18.46	18.53	18.60	18.67
Module Efficiency STC [%]	22.54	22.70	22.86	23.02	23.18
Power Tolerance	0~ +3 %
Temperature Coefficients of Pmax	-0.29 %/ºC
Temperature Coefficients of Voc	-0.25 %/ºC
Temperature Coefficients of Isc	0.045 %/ºC
Operating Temperature [ºC]	-40 °C ~ +85 °C
Maximum System Voltage	1500 VDC (IEC)
Maximum Series Fuse Rating	35 A
Nominal Operating CellTemperature - NOCT	45±2 °C
Refer. Bifacial Factor	80±5 %

Tiger Neo N-type & Tiger Pro Series
615~635W BifacialTiger Neo N-Type 78HL4-BDV
Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 34kgModules per box: 36pcsModules per 40' container: 576pcs615~635W Mono-FacialTiger Neo N-type 78HL4-(V)Cells Layout: 156 Half Cells(2x78)Dimensions: 2465x1134x30mmWeight: 29.5kgModules per box: 36pcsModules per 40' container: 576pcs600~625W BifacialTiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W BifacialTiger Neo N-type 66HL4M-BDVCells Layout: 132 Half Cells(2x66)Dimensions: 2382x1134x30mmWeight: 32.4kgModules per box: 36pcsModules per 40' container: 720pcs570~590W Mono-FacialTiger Neo N type 72HL4-BDVCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs535~555W BifacialTiger Pro 72HC-BDVP BifacialCells Layout: 144 Half CellsDimensions: 2278x1134x30mmWeight: 31kgModules per box: 36pcsModules per 40' container: 720pcs550~570W Mono-FacialTiger Pro 72HCCells Layout: 144 Half CellsDimensions: 2278x1134x35mmWeight: 27kgModules per box: 31pcsModules per 40' container: 620pcs470~490W Mono-FacialTiger Neo N-type 60HL4-(V)Cells Layout: 120 Half Cells(6x20)Dimensions: 1906x1134x30mmWeight: 22.5kgModules per box: 36pcsModules per 40' container: 864pcs425~455W Mono-FacialTiger Neo N-type 54HL4R-(V)Cells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcs420~440W All BlackTiger Neo N-type 54HL4R-BCells Layout: 108 Half Cells(6x18)Dimensions: 1762x1134x30mmWeight: 21kgModules per box: 36pcsModules per 40' container: 936pcsPictures & Package
Tier 1 Solar Panel
About Us
Contact Us
FAQA: What's your warranty policy?
We offer 12 years warranty for materials and processing, and 25 years warranty for extra linear power output.B: Are you a factory or trading company?
We are a factory with more than 19 years of experience in producing solar energy series products. You are welcome to visit our factory.C: Can you support OEM and field installation?
We are a factory with more than 19 years of experience in producing solar energy series products. You are welcome to visit our factory.D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.E: Which type solar modules you can offer?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately If you want to know more information, you can send inquiry to our team, we will cover more details.
