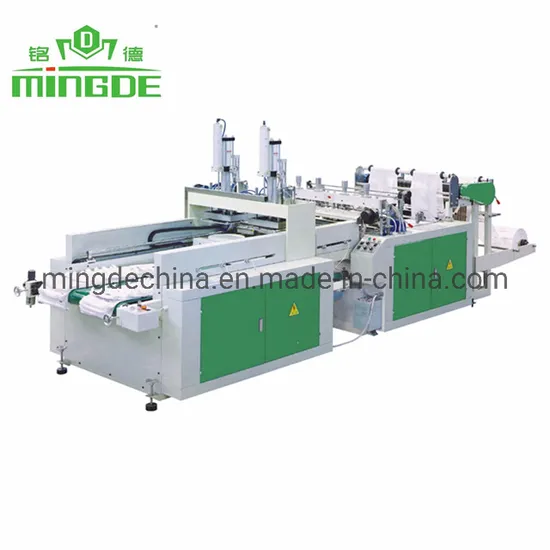

Full Automatic High Speed Plastic Shopping T-Shirt Bag Making Machine

Product Description

Full automatic high speed Shopping bag making machine
Usage:
Suitable material: HDPE, LDPE
Can make printed-bags.
With PLC, double servo(step) motors
photocell eye
punching device
computer control
conveyor belt

Model	MD-DFR450*2C
Max Cutting Width	200-400*2lines
Max Cutting Length	200-600mm*2lines
Thickness	0.015-0.035mm
Speed	200-250pcs/min*2lines
Air Compressor	7.5HP
Total Power	7.5KW
Weight Of Machine	2200kg
Dimensions	6*1.55*1.7m

Model	MD-DFR-500	MD-DFR-700
Max Sealing And Cutting Width	400mm	600mm
Sealing And Cutting Length	100-1000mm	100-1000mm
Sealing And Cutting Thickness	0.005-0.5mm	0.005-0.5mm
Error In Length	±1mm	±1mm
Bag-Making Speed	40-120pcs/min	40-120pcs/min
Power Of Main Motor	0.75kw	1.1kw
Heating Power	2kw	2.4kw
Total Power	3kw	3.8kw
Weight Of Machine	800kg	900kg
Dimensions	2.6*1.1*1.5m	2.6*1.3*1.5m

Model	MD-DFR350*2	MD-DFR450*2
Width Of Bag-Making	30*300mm	30*400mm
Length Of Bag-Making	10-999mm	10-999mm
Speed Of Bag-Making	(150-200)pc/min*2	(150-200)pc/min*2
Power Of Motor	2kw	2kw
Power Of Electric-thermal	3kw	4kw
Weight of machine	1000kg	1200kg
Dimensions	3*1.4*1.6m	3*1.5*1.6m

Model	MD-DFR-350*2B	MD-DFR-450*2B
Max Width Of Bag-Making	300mm	400mm
MAX Length Of Bag-Making	600mm	600mm
Bag-Making Thickness	0.015-0.035mm	0.015-0.035mm
Bag-Making Speed	150-200pcs/min*2	150-200pcs/min*2
Air Pressure	5kg/cm²	5kg/cm²
Total Power	7kw	9kw
Weight Of Machine	1400kg	1600kg
Dimensions	6*1.4*1.6m	4*1.5*1.6m

Company:
Ruian Mingde Machinery Co., Ltd got its start in 2010 and built a modern manufacturing complex in Ruian. Although we are a young firm, we are outfitted with a team of dedicated and loyal employees who put heavy concentration and focus on how to boost our product quality and competiveness. Near Shanghai Port, we enjoy a convenient location, which allows us to deliver our good condition paper converting machinery to clients in an ultra-fast fashion. To date, we have attracted and kept countless customers both at home and abroad. Our company, Mingde is the best choice for paper container manufacturer.Believe your choice, believe in our company. We sincerely look forward to working with you hand in hand to create success altogether.workshop for film blowing machine :
Machine packing and Shipment :
Exhibition:
Service:
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.

FAQ:
1.Trade company or manufacture?
we are a manufacture of paper cup machine.
2.How to tour our factory?
Some lines you can chooes. First, you can come to guangzhou air port, then by air to wenzhou air port, then we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train ruian then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine speres broken because the quality not good, then we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operate. we provide the food for you.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the nude packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.
