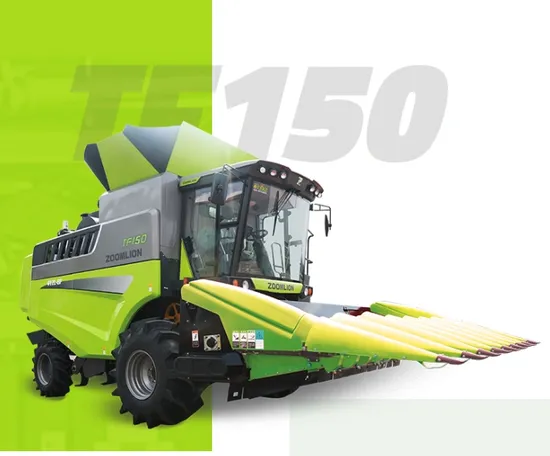

Zoomlion Self-Walking Wheel Type TF150 Super Big Combine Harvester Wheat Head with Automatic Cutting Max Diameter 350mm
Basic Info.
Model NO.
TF150
Application
Cotton, Rice, Corn, Wheat, Sugarcane
Power Source
Diesel
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Optional
Condition
New
Application Field
Agriculture
Warranty
1 Year
Model
TF150
Dimensions(L*W*H)
11500×2200×3630mm
Track Width
400mm
Transport Package
Nude Package
Specification
/
Trademark
Evangel
Origin
China
HS Code
8429401900
Production Capacity
150
Product Description
Chinese Leading Brand Zoomlion Combine Harvester for Hot Selling:
COMBINE HARVESTER TF150:
Over 1.5m row spacing Feeding capacity 23kg/s 230HP high pressure common rail Yuchai engine 360° in-situ rotation, easy for steering Three-section conveying arm Automatic variable-diameter conveying technology Luxury AC cab, High degree of automation ADVANTAGE INTRODUCTION: * Suitable for working on slope below 10°and field over 1.5m * Three-section bended conveyor, quick release structure that straight and bend type * Front feed roller is driven by two hydraulic motor * Newly added line-keeping system
Product Parameters
| Model | Unit | TE150 | |
| Dimensions(L*W*H) | mm | 11500×2200×3630 | |
| Weight | kg | 9800 | |
| Rail distance | mm | 1400 | |
| Wheel base | mm | 2310 | |
| Grounding length | mm | 1670 | |
| Engine | Model | / | High pressure common rail |
| Rated power | kW/rpm | 140/2050r/min | |
| Displacement | L | 7 | |
| Emission grade | / | Euro 3 | |
| Track width | mm | 400 | |
| Earthing voltage | kPa | 59 | |
| Feeding capacity | kg/s | 6 | |
| Adaptive ridge spacing | mm | ≥1100 | |
| Adaptive ridge height | mm | 0~200 | |
| maximum gradability | ° | ≤20 | |
| Operating forward speed | km/h | 0~6.65 | |
| Qualified rate of cutting height | % | ≥90 | |
| Root breaking rate | % | ≤10 | |
| dirt percentage | % | ≤8 | |
| Total loss rate | % | ≤5 | |
| Qualified rate of sugarcane section | % | ≥93 | |
| Fuel consumption per hectare | kg/hm2 | 190 | |
