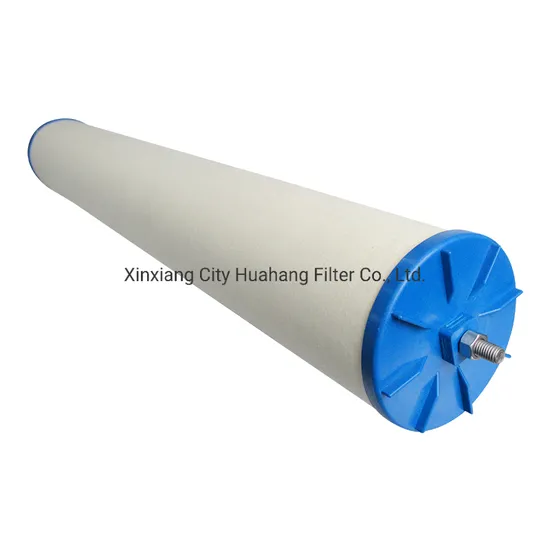

1-644A4TB Industrial Machinery Aviation Coalesce Natural Gas Filter Cartridge Element Coalescing Natural Gas Filter

Product Description

Product Description 1-644A4TB Industrial Machinery Aviation Coalesce Natural Gas Filter Cartridge Element Coalescing Natural Gas Filter
We can manufacture filter as your requirement .Please kindly advise photo and size . Welcome OEM & ODM !Kindly inform us following information
1,Photo
2,ID,OD,Height
3,Filtration Precision
4,End Cap
1-644A4TB double open coalescer filter workflow
1. Pre-filtration: The medium is filtered through a 4 micron pre-filter to extend the life of the coalescer and reduce the particle content in the filtered solution to meet the requirements for the solid content of the fluid.
2. Coalescence: The mixture of hydrocarbon and water flows from the inside to the outside through the coalescer filter. When the mixture passes through the filter element, the tiny droplets in the dispersed phase converge here, that is, coalesce.
3. Separation: When separating the moisture in the fuel oil, the anhydrous fuel oil and the large water droplets flow to the separator directly at the bottom of the coalescer, the fluid flows from the outside to the inside, and the separator medium is hydrophobic, which can prevent water. Enter, only allow no water to pass through. The water and fuel oil are then discharged through different drains.
CC3LG02H13 double open coalescer filter product application:
Effectively removes moisture from petroleum products and chemicals. Applicable filter media: all gasoline, diesel, kerosene, lubricating oil, aromatics, petrochemical products, liquefied petroleum gas. Technical parameter Technical parameters-----Nominal Cartridge Dimensions

Outer Diameter (mm/in)	70/2.75
Part Number	CC3LG02H13
Length (mm/in)	762/30
Surface Area (m2/ft2)	0.88/9.5

Performance Specification
Solid Removal Rating 0.3 μm (99.99%)
Temperature Rating 180°F (82°C) 150°F (65°C) with Water
Clean & Saturated Pressure Drop Sized to your specification
Conditions: Delta P on inlet pressure
Inlet Pressure = 20 psia
Outlet Pressure = 200 psia
Gas compressed is methane
Model replacement coalescing filter part No.

CC3LG02H13	CC3LGA7H13	LSS2F2H
CS604LGH13	CC3LGB7H13	LCS2H1AH
LCS2B1AH	CC3LGO2H13	LCS4H1AH
LCS4B1AH	CS604LGBH13	LSS2F1A
LCS2HHH	LCS4HHH	LCS2BAH
LCS4BAH	LSS2FH	CC1LG02H13

Company Profile Xinxiang City Huahang Filter Co., Ltd. is the professional production enterprises which is design, product and sales of filter and filter elements. We offer various of high quality products with strong technical force,perfect detection equipment,and good perfect after sales services. In order to meet the market demand, we are equipped with professional R & D personnel, advanced professional equipments, and developed the filtering technology for various categories and support a variety of filtration testing and cleaning equipments for many enterprises from domestic and overseas.
Packaging & Shipping Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery time
7-10 days for payment ; 12-15 days for batch goods
FAQ 1. who are we?
We are based in Henan, China, start from 2003,sell to North America(29.00%),Central America(15.00%),Northern Europe(10.00%),Southern Europe(9.00%),Western Europe(7.00%),South Asia(6.00%),South America(6.00%),Domestic Market(5.00%),Southeast Asia(5.00%),Eastern Europe(4.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hydraulic Oil Filter; Air Filter Cartridge; Sintered Filter; Water Filter Cartridge; Coalescer And Separator
4. why should you buy from us not from other suppliers?
Founded in 2003, Filtration and Separation Industry Association member units, advanced technology, well-equipped, reliable quality and excellent service. Currently leading products include hydraulic filters, air filters, pipe filters, water filters series.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;
Language Spoken:English,Chinese
