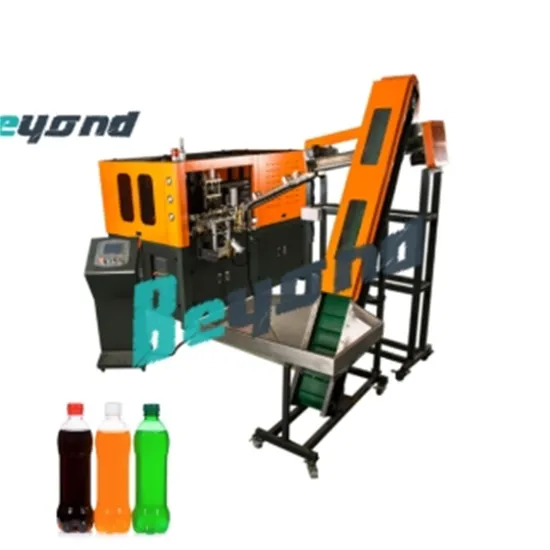

Fully Automatic 6-Cavity Stretch Bottle Blow Molding Stretch Making Machine

Product Description

Fully Automatic 6-Cavity Stretch Bottle Blow Molding Stretch Making Machine
Product Description
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: Less than 0.2 percent.
Main constituent parts of full-automatic blow moulding machine
Working valve: ARK(South Korean)
Cylinder: AirTAC(Taiwang)
PLC: Siemens(German)
Computer Board: WEINVIEW(Taiwang)
Relay: OMRON(Japan)
Product Parameters

container volume(ml)	1500
Electrical system(V)	380v/50-60Hz
Cavity	1
Max diameter(mm)	93
clamping stroke(mm)	120
mold thickness(mm)	160
stretching stroke(mm)	450
theoretical output(pcs)	2400
Weight (KGS)	2000
The total measure area	2720*3400mm
Main machine size	2720*1440*2060mm
Loading machine size	1700*1100*2400mm
Power(kw)	50
Use power(kw)	20

More Products

Main production line
PET bottle blowing machine	Water treatment system	Water filling machine
Carbonated drink filling machine	Alcohol/beer filling machine	Can filling and sealing machine
Label&packing machine	Juice/tea filling machine	Oil filling machine

After Sales Service
Service Term
1. Installation
The initial installation is not included with the professional member. All installation with our team must be scheduled at least 4 weeks in advance before actual trip taken. All necessary connectivity must be ready prior the service being scheduled.
While our professional member arrives at the site for a completed and final installation, two days training course will be provide to the customer for operation and maintenance procedure. The initial installation is provided within 5 working days . The actual installation days many vary, based on different machine mode and packing lines. Each day of working hour consist at 8 working hours. Any additional day will be charge according to our service fee listed below.
When initial installation is being called for our professional member required, the surcharge will be made advance by the purchase at US$80/person/day plus all travel expenses. Travel expenses include documentation fees visa charge); local and destination transportation charges air, train, ferry, bus, taxi or any means of transportation required to arrive to/from destination); accommodation (minimum of 3 star hotel facility) and 3 daily hot meals.
2. Translator
If translator is required and can't be provided by purchaser then we will provide a translator for same charge as initial installation stipulated above. All communicate with our engineer should be in Chinese. Any translation provide by us will be based between English and Chinese only. Purchaser is responsible for the translation between local language and English.
Commercial Terms
1. Warranty
All parts are under two Year Warranty with defects from manufacturer. Any other defect caused by human error, mishandling, wear-and tear & any foreseeable conditions will not be covered by this warranty. All electronic parts and component can be guaranteed by original part's manufacturer or our company.
2. Payment
30% of the total contract amount is to be T/T into assigned account at the period of 5 working days after the Purchase contract is signed.
70% of the balance must to be made via T/T of the remainder balance amount of the purchase contract before the ordered equipment is to be delivered 10 working days prior of the shipment.
We also accept L/C payment, 30% down payment, and 70% L/C at sight
Company Profile
ZHANGJIAGANG BEYOND MACHINERY CO., LTD. is a group company located in Sanxing Industrial Park, Zhangjiagang City, Jiangsu Province, China.
For beverage machine, our main products including:
*The capacity of 2000-- 30000 BPH for juice and tea hot filling producing line.
*The capacity of 2000 -- 30000 BPH for mineral water and purified water producing line.
*The capacity of 2000 -- 30000 BPH for carbonated beverage and cold filling producing line.
*The capacity of 1000 - 8000 BPH for vinegar and alcohol and oil producing line.
*The capacity of 100 -- 2000 BPH for 1 and 3 and 5 gallon barrel producing line.
*The capacity of 2000 -- 10000 BPH for soybean milk and peanut milk and other plants protein drink producing line.
*2~20T/H water treatment equipment(mineral water and pure water).
*PET perform inject and blowing-stretching machine.
Relevant equipments: Bottle unscrambler/Full bottle overturn sterilizer/Concentrating equipment/Plate and tube UHT device/CIP system/Labeling machine/Auto film shrinking packing machine.
We carry a strict quality management system in accordance with ISO9001 requirements. We have established a complete processing line including design and manufacture and sale and after sale service. Our products are well sold around the world.
We are proud to adhere to our company slogan "Engineering Excellence". Please be free to contact us for more information and we are ready for making business relations with you in the near future





FAQ
Q:How can I install my machine when it arrives?
A:We will send the engineers to install and test the machines and have training lessons abroad, but the Visa fee, round tickets, accommodation, eating, and the allowance of 80USD per day per person will be on customer's side.
Or the customer can send the engineer to our company to complete the inspection of the goods, as well as the installation and training lessons ,but the Visa fee, round tickets, accommodation, eating, and the allowance will be paid by customers .
Q:What's your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 2 years guarantee . we will give u free spare parts in 2 years.
If during the warranty period, the quality or specification of the goods is found to be inconsistent with the contractual requirements, or if the goods are found to be defective (including potential defects or the use of unqualified materials, etc.), the buyer has the right to use the inspection documents issued by the statutory authority. During the warranty period of the goods, the buyer shall make a claim against the seller.
Q:Where is your company located ?How can i visit there?
A:Our factory is located in XiGang jinfeng town,zhangjiagang City,Jiangsu Province,China.
You can fly to Shanghai Pudong International Airport and we are warmly welcome to visit us.(Provide pick-up service.)
Q:How can l get some samples?
A:We have no sample.we will send you more pictures and video about this machine,and welcome to visit our factory to see the machine running in the factory.
Q:How about the quality of your products.
A:Our company guarantees that the products provided are brand new, unused, with the latest design and suitable materials, and comply with the quality, specification and performance of the contract in all respects.
Q:What's the delivery time?
A:7-45 days after the T/T deposit or L/C.(The premise is to receive customer's samples and deposit).
Q:What about Product's material and configuration use?
A:304 stainless steel, the machine frame material is iron. According to customer requirements, 316 stainless steel is available , complete machine stainless steel, and customers demand specified configuration.
