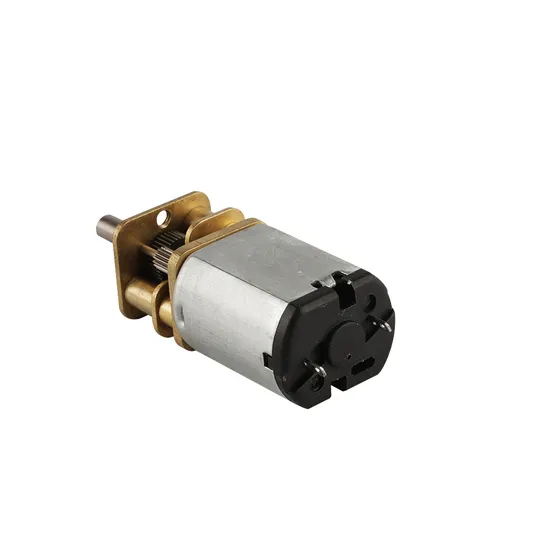

6V 9V 12V 12mm N20 High Torque Low Speed Mini Brushed DC Gear Motor
Basic Info.
Model NO.
n20
Excitation Mode
Excited
Function
Driving
Casing Protection
Open Type
Number of Poles
2
Structure and Working Principle
Brush
Type
Z2
Certification
RoHS
Brand
Xinhe Motor
Gear
Spur Gear Motor
Brush
Metal/Carbon Brush
Diameter
12mm
Voltage
3V~12V
Speed
10~3000rpm
Power
0.2~1W
Ratio
10:1~1000:1
Rosh
Yes
CE
Yes
Noise
Less Than 35dB
Encoder
12PPR
Weight
0.1kg
Packing
Carton & Styrofoam
Lead Time
25days
Payment Term
Tt
Transport Package
Cartons
Trademark
XINHE MOTOR
Origin
China
HS Code
8501109990
Production Capacity
20000/Month
Product Description
Product Description High Power version with 1.6A stall current:1.6AWith 12CPR without encoder ;
With back shaft or not.
With metal brush or carbon brush
| Model | Voltage Unit: VDC | No load speed Unit: rpm | Noload current Unit: mA | Stall torque Unit: kg.cm | Gear ratio |
| N20H5 | 6V/12V | 6000 rpm | 120/60mA | 0.1 kg.cm | 5:1 |
| N20H10 | 6V/12V | 3000 rpm | 120/60mA | 0.2 kg.cm | 10:1 |
| N20H20 | 6V/12V | 1500 rpm | 120/60mA | 0.4 kg.cm | 20:1 |
| N20H30 | 6V/12V | 1000 rpm | 120/60mA | 0.6 kg.cm | 30:1 |
| N20H50 | 6V/12V | 625 rpm | 120/60mA | 1.0 kg.cm | 50:1 |
| N20H75 | 6V/12V | 400 rpm | 120/60mA | 1.5 kg.cm | 75:1 |
| N20H100 | 6V/12V | 320 rpm | 120/60mA | 2.0 kg.cm | 100:1 |
| N20H150 | 6V/12V | 200 rpm | 120/60mA | 3.0 kg.cm | 150:1 |
| N20H210 | 6V/12V | 140 rpm | 120/60mA | 3.6 kg.cm | 210:1 |
| N20H250 | 6V/12V | 120 rpm | 120/60mA | 4.2 kg.cm | 250:1 |
| N20H298 | 6V/12V | 100 rpm | 120/60mA | 5.0 kg.cm | 298:1 |
| N20H380 | 6V/12V | 78 rpm | 120/60mA | 6.3 kg.cm | 380:1 |
| N20H1000 | 6V/12V | 32 rpm | 120/60mA | 9.0 kg.cm | 1000:1 |
