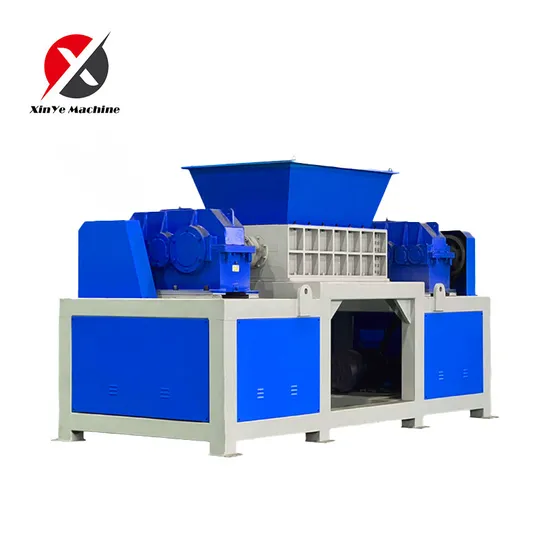

Mechanical Shredder Machine for Aluminum Cans, Rubber Mats & Wood Recycling

Product Description

Product Description
1.Dual motor+Dual reducer drive system, low speed, high torque and strong tearingability;
2.German high alloy steel cutting tools, wear-resistant and durable, long service life;
3.42CrMo high alloy steel spindle, high precision machining, good mechanical strengthand strong impact
resistance;
4.Fixed knives are set on both sides of the knife box to prevent material winding, which can be disassembled
independently and easy to maintain;
5.Self aligning roller bearing, 4-fold sealing,effective dustproof and waterproof;
6.PLC control system, current monitoring,overload protection, automatic reverserotation, protection of motor
and tool;
7.The equipment has long service life and low maintenance cost Detailed Photos
Product Parameters

Model	600	800	1000	1400	1600	2100
Main shaft speed(rpm)	73	73	73	73	73	73
Ram travel(mm)	500	820	820	820	1000	1000
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400	Φ480	Φ480
Number of rotor blades(pcs)	23	44	52	80	94	122
Number of fixed blades(pcs)	4	6	6	10	12	16
Discharge height(mm)	500	610	610	610	950	950
Screen holes diameter(mm)	40	40	40	40	40	40
Motor power(kw)	18.5	37	45	75~90	2x55~2x75	2x75~2x90
Hydraulic power(kw)	1.5	2.2	2.2	5.5	7.5	7.5
Cutting chamber dimensions(mm)	540x600	830x710	830x840	830x1300	1000x1535	1000x1995
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2890x2115	3475x4100x2700	3475x4900x2700
Weight(kg)	1600	4500	4700	6200	10800	13000

FAQ Q:Are you a factory or a trade company?
A:We are a manufacturer with our own factory in Ma'anshan, Anhui Province, China. Welcome to take a visit! Q:How to choose a shredder machine? A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation. Q:How about the service? A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods. Q:How long is your delivery time?
A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project.
Q:Which trade terms is available? A:FOB, CFR,CIF, EXW and other terms based on your needs.
