High Speed Dissolver Automotive Paint Mixer Factory Customization

Product Description

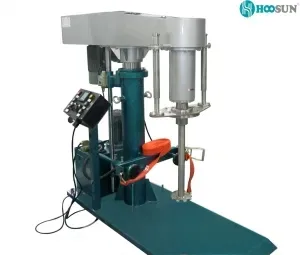

Product Overview: Introducing the Hoosun High Speed Dissolver, designed to deliver exceptional performance for mixing powders into liquids and achieving homogeneous dispersion of coatings, paints, inks, and pigments. This compact and powerful machine ensures efficient and precise processing for a wide range of industrial applications.
Key Features:
High Precision Mixing: Achieves fine grade mixing with a fineness range of 30nm to 5μm, ensuring consistent and high-quality output. Versatile Applications: Suitable for processing coatings, paints, inks, pigments, and viscous fluids, meeting diverse industry needs. Efficient Operation: Capable of handling 50-200 liters per batch, optimizing productivity and reducing processing time. Advanced Design: Vertical structure with a dual power system and Siemens screen for enhanced control and monitoring. Robust Construction: Made with solvent-resistant paint and adjustable tongs, ensuring durability and easy operation. User-Friendly: Simple and flexible operation, with features like low-speed wall scraping and vacuum stirring for efficient defoaming. Technical Specifications:
Model: HSD 25 Mixer Type: Planetary Mixer Stirring Type: Spiral Operating Type: Cycle Operating Drive: Electric Operation Voltage: 380V/50Hz/3 phases Capacity: 100 - 700 liters per batch Performance Advantages:
Efficient Centrifugal Separation: Utilizing a screen-free centrifugal separation principle, the dual power centrifugal nano bead mill ensures even distribution and efficient grinding of zirconium balls, achieving superior dispersion and depolymerization. High Fineness: Capable of grinding to a fineness of 50-150nm with zirconia bead diameters ranging from 0.03 to 0.6mm. Advanced Materials: Optional materials like tungsten carbide, polyurethane, zirconia, silicon carbide, and silicon nitride provide enhanced wear resistance and thermal conductivity. Broad Application Range: Ideal for processing nano new materials, MLCC, lithium batteries, silicon carbon cathode electrodes, alumina, ceramic ink, and more. After-Sales Service:
Installation on Site: Ensures correct setup and optimal performance. Lifetime Maintenance: Providing ongoing support to keep your equipment running smoothly. Warranty:
1 Year Elevate your production capabilities with the Hoosun High Speed Dissolver, the perfect solution for efficient and precise mixing and dispersion. Contact us today to learn more and place your order.
Technical Parameter

Model	Chamber	Rev.	Motor Power	Bead Dia.	Bead Rate	Batch Capacity
HSD1	1L	1200 - 2500rpm	3.7KW	0.2 - 2.0mm	80 - 85%	1-7L
HSD10	10L	1070 - 1500rpm	13.5/15KW	0.2 - 2.0mm	80 - 85%	50 - 250L
HSD25	25L	1070 - 1500rpm	18.5/22KW	0.2 - 2.0mm	80 - 85%	100 - 700L
HSD50	50L	1070 - 1500rpm	45KW	0.2 - 2.0mm	80 - 85%	200 - 1500L
HSD100	100L	900 - 1650rpm	55/75KW	0.2 - 2.0mm	80 - 85%	<2500L
HSD150	150L	900 - 1650rpm	75KW	0.2 - 2.0mm	80 - 85%	500 - 3500L
HSD200	200L	900 - 1650rpm	75/90KW	0.2 - 2.0mm	80 - 85%	1000 - 5000L
HSD300	300L	900 - 1650rpm	90/110KW	0.2 - 2.0mm	80 - 85%	>7500L
HSD600	600L	900 - 1650rpm	250KW	0.2 - 2.0mm	80 - 85%	>10000L
HSD1200	1200L	900 - 1650rpm	355/450KW	0.2 - 2.0mm	80 - 85%	>20000L
