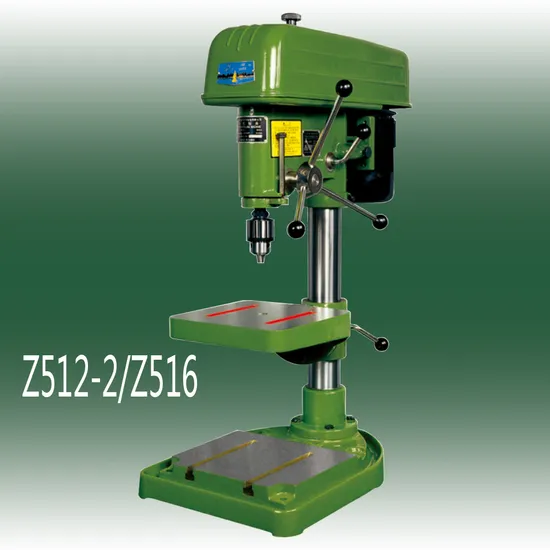

High Speed Industrial Bench Drill Z512-2 Table High Precision Drilling Machine Maximum Diameter 12.7 mm
| US$548.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z512-2
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Motor
370W
Max Drilling Capacity
12.7 mm
Transport Package
Wooden Case
Specification
79x44x96cm
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
| Model | Z406/Z406C | Z512-2/Z516 | Z512-2A/Z516A | Z512B | Z512B-1 |
| Max.drilling capacity | 6mm | 12.7/16mm | 12.7mm/16mm | 12.7mm | 12.7mm |
| Diameter of column | 50mm | 70mm | 70mm | 70mm | 70mm |
| Spindle travel | 60/65mm | 100mm | 100mm | 100mm | 100mm |
| Distance spindle axis to column surface | 140mm | 193mm | 193mm | 193mm | 193mm |
| Max.distance spindle nose to worktable | 326/318(MT.2:362)mm | 326mm/318mm(MT.2:362mm) | 315mm | ||
| Max.distance spindle nose to base | 225mm | 556/548(MT.2:592)mm | 556mm/548mm(MT2:592mm) | 556mm | 356mm |
| Spindle taper | B10 | B16/B18 or MT.2 | B16/B18 or MT.2 | B16 | B16 |
| Spinde speeds range | 1400-5600rpm | 480-4100rpm | 480-4100rpm | 480-4100rpm | 480-4100rpm |
| Spindle speeds | 3 | 5 | 5 | 5 | 5 |
| Dimension of worktable surface | 265x265mm | 265x265mm | 200x230mm | ||
| Dimension of base worktable surface | 200x200mm | 250x300mm | 250*300mm | 280x260mm | 280x260mm |
| Overall heightr | 556/606mm | 1037mm | 1037mm | 1037mm | 666mm |
| Motor | 250W | 370W/550W | 370W/550W | 370W | 370W |
| G.W./N.W. | 46/38kg | 100/84kg | 110/92kg | 110/94kg | 92/76kg |
| Ship measurement | 64x33x61cm | 79x44x96cm | 79x44x96cm | 80x46x95cm | 80x46x75cm |
