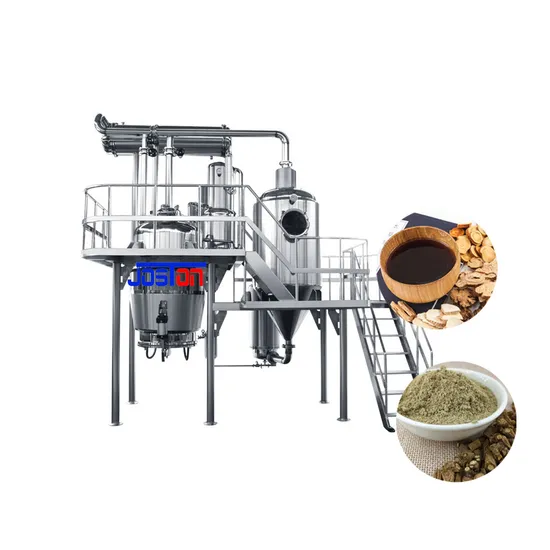

2000L 3000L 6000L Botanical Multifunctional Thermal Reflux Extractor and Concentrator Tank Vessel

Product Description

Product Parameters
Technical description

model	RHL-1.0		RHL-2.0		RHL-3.0		RHL-6.0
	extractor	concentrator	extractor	concentrator	extractor	concentrator	extractor	concentrator
Steam pressure: MPa	0.3	0.2	0.3	0.2	0.3	0.2	0.3	0.2
Working pressure:MPa	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084	≤0.09	-0.084
Jacket temperature : ºC	142	132	142	132	142	132	142	132
Working temperature ºC	≤100	60	≤100	60	≤100	60	≤100	60
Extractor tank volume(L)	1000		2000		3000		6000
Evaporator capacity :KG/H	500		800		1000		2000
Heating area: m2	6.2		9.8		12.2		25
Condenser area: m2	21		30		44		82
Steam consumption:kg/h@3bar	600		950		1200		2500
Cooling water consumption:kg/h	25		35		50		90
Dimension (L×W×H) :mm	4000×1800×4600		4500×2200×5900		5200×2400×7250		6600×2800×7550

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
