Cold Roll Formed Light Gauge Steel Structure Frame Making Machine for Prefab Houses

Product Description

Producing Process Flow
Technical Parameters

Size	C89
Dimension	4200*800*1100mm
Main Servo Motor Power	7.5KW
Hydraulic Motor	7.5kw
Forming Steps	9Steps
Forming Speed	4-5tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	89mm
Material Width	174mm
Flange Height	38mm
Lip	9mm
Material Thickness	0.6-1.2mm
Tolerance for cutting and punching	±0.5mm
Tolerance for forming	±0.75mm
Control System	IPC Computer Controlling System

Profile Dimensions

Profile Model	C Section(mm)			Thickness
	Web	Flange	Lip
C89	89	38	9	0.6-1.2mm

Real Customer Feedback

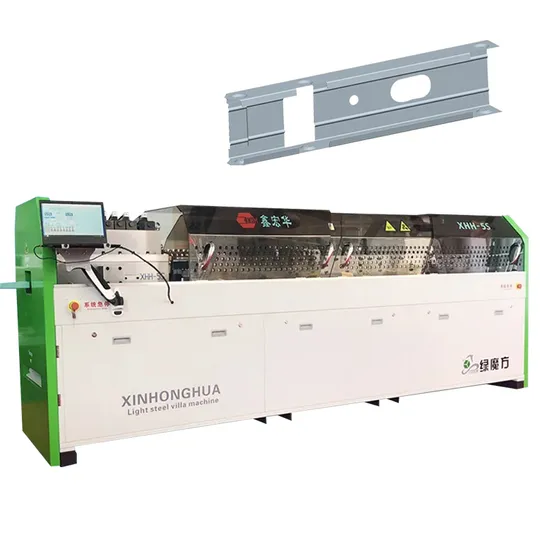

Machine Picture
Machine Components & Specifications

No.	Items	Quantity	Specifications
1	Steel Strip Uncoiler	1	Automatic Start-stop Device,Converter Motor Driven Coil Exterior Diameter:≤1300mm Rated Load:3T Main Motor Power:1.5kw Material Width:50-500mm Inner Diameter:450-530mm
2	Roll Former Machine	1	Machine Dimensions:4000x800x1100 Machine Weight:2.5T Forming Method :9 stations Drive Mode: Gear + Sprocket Main Motor: 7.5kw Servo Motor Roller Material:Gcr15 Main Shaft Material : 40Cr Forming Speed :2700m/hour(without punching & cutting) Production Capacity :4-5tons/8h(overall speed:including drywall panel, roof truss and floor joist)
3	Hydraulic Puncher/Cutter	6	Punching method:Post Punching(high precision performance on position & dimension) Die Material:Cr12mov; Cutting method:Forming Cutter,Blanking shear with three blades; Material of blade:Cr12mov; surface treatment:CNC semi-finishing ,Vacuum treatment to 58-60HRC CNC refining
4	Hydraulic Station	1	Hydraulic Motor Power:7.5kw Tank Capacity:180L Inlcuding compression refrigeration system
5	Controlling System	1	Laptop Computer 1 set PLC controller 1 set NC controlling software Punching Position Controlling Cutting Position Controlling Production Batch Quantity Controlling Batch Detail Quantity Controlling Any time monitoring during production Remote control and maintenance
6	Label Printer	1	can print LOGO,Picture,Chinese,English,figure
7	Layout Table
8	Tool
9	Spare parts
10	User Manual 1 copy
11	Service	1. Factory Lifetime Service:offer technical support for the entire life of our machines. 2. Customized Profile:can design the profile according to customer request. 3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems. 4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Package
The main body of the machine is bare and wrapped in a plastic film (to prevent dust and corrosion), and it is loaded into the container and steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
