Radial Drill Press Drilling Machine Rd-Series

Product Description

Hydraulic Radial Arm Drilling Machine
RD310 RD313 RD410 RD413 RD516 RD620 RD825
Features:
Base, column, boom and gear head are made of premium high-quality cast.
Major design features include a large column and a highly torsion-resistant boom.
Boom height adjustment via a powerful motorized drive and vertical spindle.
The boom lifting gears run in an oil-bath for maximum reliability and minimum wear.
Advanced column swivel design with optimized clamping features maximum rigidity and minimum clamping offset.
Swivel axis and travel axis features extremely smooth operation to make the operator's everyday production work easier.
The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
All gear parts are lubricated reliably via oil pump.
The main spindle runs on precision bearings and features an automatic spindle brake.
Technical Parameter:
Medium and Small Type Driller

Specification	Unit	RD310	RD313	RD410	RD413
Max. drilling diameter	mm	35	35	40	40
Distance from spindle center to column surface	mm	300-1000	300-1300	300-1000	300-1300
Distance from spindle nose to worktable surface	mm	250-1020	320-1020	215-965	215-965
Spindle box horizontal travel	mm	700	1000	700	1000
Radial ram rotary angle	deg	±180°	±180°	±180°	±180°
Spindle taper	-	Morse No.4	Morse No.4	Morse No.4	Morse No.4
Spindle speed range and grades	rpm	50-2350(12 steps)	50-2350(12 steps)	50-1035(9 steps)	50-1035(9 steps)
Feed speed and grades	mm/r	0.13-0.54(4 steps)	0.13-0.54(4 steps)	0.13-0.54(4 steps)	0.13-0.54(4 steps)
Spindle travel	mm	250	250	250	250
Main motor power	kw	3	3	3	3
Net weight	kg	1600	1780	1600	1780
Floor area	mm	1050x650	1350x650	1050x650	1350x650
Worktable size	mm	450x450	450x450	450x450	450x450
Overall dimension	mm	1805x800x2320	2105x800x2320	1805x800x2320	2105x800x2320

Large Type Driller

Specification	Unit	RD516	RD620	RD825
Max. drilling diameter	mm	50	63	80
Distance from spindle center to column surface	mm	350-1600	450-2000	500-2500
Distance from spindle nose to worktable surface	mm	320-1220	400-1600	550-2000
Spindle box horizontal travel	mm	1250	1600	2000
Radial ram rotary angle	deg	±180°	±180°	±180°
Spindle taper	-	Morse No.5	Morse No.5	Morse No.6
Spindle speed range and grades	rpm	25-2000(16steps)	20-1600(16steps)	16-1250(16steps)
Feed speed and grades	mm/r	0.04-3.2(16steps)	0.04-3.2(16steps)	0.04-3.2(16steps)
Spindle travel	mm	315	400	450
Main motor power	kw	4	5.5	7.5
Net weight	kg	3500	7000	11000
Floor area	mm	1590x840	2000x1080	2450x1160
Worktable size	mm	500x630	625x800	800x1000
Overall dimension	mm	2500x1070x2840	3080x1250x3400	3730x1400x4025

Standard Configuration:
• Hydraulic pre-selection speed and feed change mechanisms
• Hydraulic clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Box shape worktable
• Halogen work light
• Coolant system
• Tool & tool box
• Operator manual in English
• 380V-50Hz-3Ph or as client's request.
One-stop Shopping
Please click on the picture to view the product category you are interested in

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).

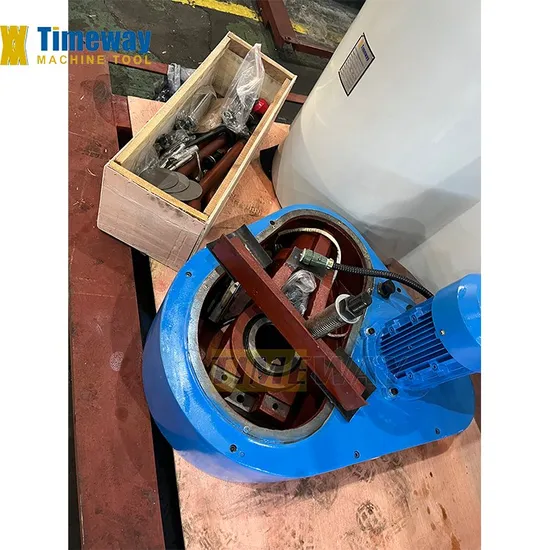

Packaging & Shipping
