US$1.00
|
3,000 Meters
(MOQ)
|
Basic Info.
Hose Coupling Type
Hose Coupling
Weaving Type
Plain Weaving
Hose Coupling Structure
Plug-in
Transport Package
Bags, Cartons
Specification
13BAR-52MM-20M
Production Capacity
2, 000, 000m/Month

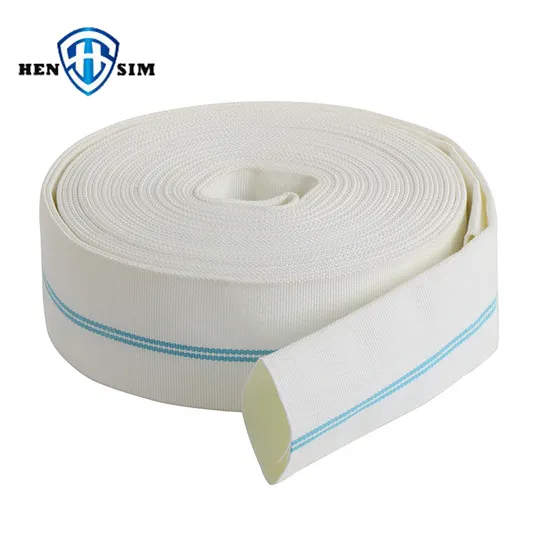

Product Description
Jacket: Polyester filament or polyester yarn,
single jacket, twill or plain weavin
Lining: PU
Thermoplastic polyurethane elastomer (TPU) is a kind of elastomer that can be plasticized by heating and can be dissolved by solvent. It has excellent comprehensive properties such as high strength, high toughness, wear resistance and oil resistance. It has good processing performance and is widely used in national defense, Medical, food and other industries.
Features: Lightweight
Highly resistant to abrasion
Highly resisitant to low temperature
Good adhesion proof
Standard: UL/Japan standard
Application: Fire fighting, Marine, Industrial, Fire
brigades
| Inner Diameter | Working Pressure | Bursting Pressure |
| inch | mm | Mpa | Mpa |
| 1 ½ '' | 38 | 0.8~3.0 | 2.4~9.0 |
| 1 ¾ '' | 45 | 0.8~3.0 | 2.4~9.0 |
| 2 '' | 50 | 0.8~3.0 | 2.4~9.0 |
| 2 ½ '' | 65 | 0.8~3.0 | 2.4~9.0 |
| 2 ¾ '' | 70 | 0.8~3.0 | 2.4~9.0 |
| 3 '' | 75 | 0.8~3.0 | 2.4~9.0 |
| 4 '' | 102 | 0.8~1.6 | 2.4~4.8 |
| 5 '' | 127 | 0.8~1.3 | 2.4~3.9 |
| 6 '' | 152 | 0.8~1.3 | 2.4~3.9 |
Structure:
