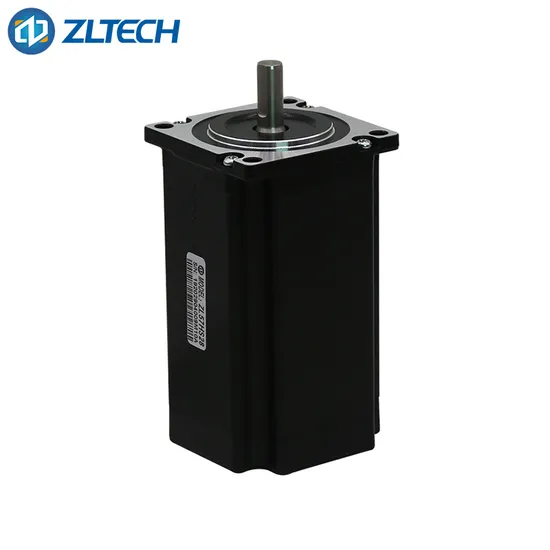

NEMA23 57mm 2.8n. M Electrical DC Hybrid CNC Machine Step/Stepping/Stepper Motor

Product Description

Nema23 57mm 2.8N.m electrical DC hybrid CNC machine step/stepping/stepper motor
Product Description
Performance parameter

Model	Shaft extension	Holding Torque	Current /phase	Resistance /phase	Inductance /phase	Rotor inertia	Lead wire NO.	Motor W	Motor L
ZL57HS06	platform 0.5x15mm	0.6N.m	2A	1.2Ω	2.3mH	140g.cm²	4	460g	42mm
ZL57HS09	platform 0.5x15mm	0.9N.m	3A	0.7Ω	2.4mH	280g.cm²	4	720g	56mm
ZL57HS13	platform 0.5x15mm	1.3N.m	2.8A	1.0Ω	2.1mH	460g.cm²	4	1000g	76mm
ZL57HS22	platform 0.5x15mm	2.2N.m	4.0A	0.8Ω	1.8mH	460g.cm²	4	1050g	81mm
ZLLG57HS22-11	platform 0.5x15mm	2.2N.m	4.0A	0.8Ω	1.8mH	460g.cm²	4	1050g	81mm
ZLLG57HS22-B	platform 0.5x15mm	2.2N.m	4.0A	0.8Ω	1.8mH	460g.cm²	4	1050g	81mm
ZL57HS28	platform 0.5x15mm	2.8N.m	5.0A	0.6Ω	2.0mH	680g.cm²	4	1500g	100mm

Feature: Large output torque, high speed and no step loss; Low heat, low noise, low vibration and high precision and long lifespan. Integrate stepper motor and driver in one motor. Stepper Motor material decomposition
Dimensions (unit: mm)
Motor wiring
Attention:
1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load.
2. When the motor is connected to the driver, do not connect the wrong phase.
Assembling process
All kinds of 2 phase integrated open loop stepper motors for choice
Packaging & Shipping Motor weight: 1500g
Motor length: 100mm
Package: carton with foam, quantity per carton will depend on the motor size.
Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.
Company Information
1. Brief introduction:
Shenzhen Zhongling Technology Co., Ltd. is a high-tech enterprise specialized in R&D, production and sales of industrial automation transmission products; The company gathered a large number of R&D elites being engaged in motion control field for more than 10 years and constantly provide cost-effective motion control products for our partners.
2. Product ranges:
Robot Hub Servo Motor, Digital Stepper Driver, Closed Loop Stepper Driver, Low-voltage DC Servo Driver and Stepper Motor, Multi-axis Motion Controller etc.
3. Our service philosophy: Create value for customers.
4. Core value: Dedicated, innovative, virtuous, and pragmatic
5. Our vision: Being the most professional brand in the field of automation control, serving the global industry
About ZLTECH products on Exhibition:
Contact:
Tel: 0086-0755-29799302; Cel: 0086-13510984905;
FAQ:
1. Factory or trader?
We are factory, and have professional R&D team as introduced in company information.
2. How about the delivery?
- Sample: 3-5 days.
- Bulk order: 15-30 days.
3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.
4. Why choose us?
1. Factory Price & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
5. Do you get the relevant certification?
All products are made according to ISO9001, CE requirements.
