New Modern Poultry House Chicken Feeding System

Product Description

Modern Poultry House Chicken Feeding System
modern poultry house


Product Description
Our chicken feeding system mainly including:

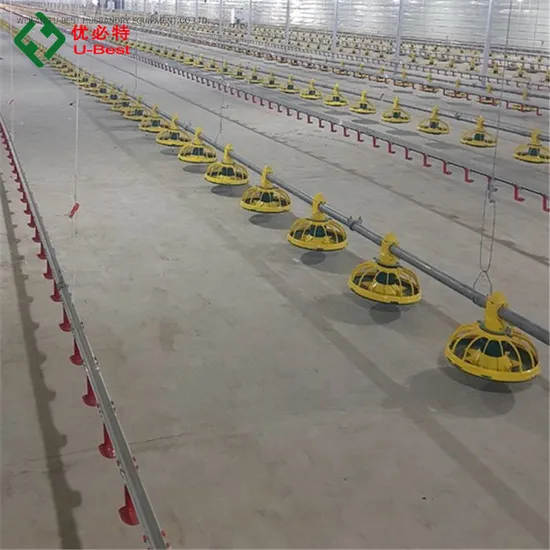

1. Pan Feeding System
The system can deliver feed from each vice hopper into each pan feeder.

Name	Features
Vice hopper	Size: 70Kg, 90Kg Material:hot-dip galvanized sheet, thickness:1mm
Drving motor	Taiwan brand Power: 0.75Kw/1.1Kw/1.5Kw, Voltage:380V/220V/others, three-phase/single-phase Frequency:50Hz, AC current
Pan feed lines	Feed pipe: Diameter of feed pipe:Φ45mm Material:hot-dip galvanized steel with the zinc coating amount-more than 275m2. Helical spring auger is imported from South Africa, feeding ability:450Kg/h Feed pan Feeding line specification: 4 feed pans/3m, 3 feed pans/3m Feed pan capacity: 50-55 broilers/pan
Sensor	imported from Germany time delay range: 0-2hours The sensor is usually installed at the end of each feeding line which controls motor on and off to achieve feed delivery automatically. The motor will start working and convey feed when sensor doesn't touch feed and will stop conveying feed when sensor touchs feed.
Lifting&suspension system	It's very convenient to adjust the feeding line height by winch.

2. Nipple Drinking System
The system can provide water from water source to each drinking line (each nipple).

Name	Features
Waterline front system	Front part is controller of water, which is usually installed in control room. *Pressure regulating valve: to make sure to supply stable water to drinking lines. *Filter: clean water and avoid blocking nipples. *Water meter: to measure water usage volume. *Doser/Medicator: add medicine to drinking system automatically to prevent disease.
Pressure regulator	Regulating stability; High switching performance; Water supply is sufficient&equality; Recoil cleaning with good cleaning result,save time and water; Good quality movable valve, easy to change.
Nipple drink lines	Nipple: The outside shell is made of high quality plastic, the valve rod is made of high quality stainless steel. a. Anti-corrosion, service life over 10 years; b. Double-sealing structure, avoiding water leakage and its bad influence to chicken house; c. Valve rod can be movable in 360 degree, easy to drink; d. Meet eating demand of different stages chickens. Drip cup: Material: pure engineering plastic-PP. a. One-arm design, more suitable for modern poultry idea; b. Tight to water pipes, won't drop when touching in cold weathers. PVC square water pipe&galvanized supporting tube/aluminum profile suspension Drinking line specification: 15 nipples/3m, 12 nipples/3m Nipple drinker capacity: 8-12 broilers/drinker
Water display level tube	Use high transparency&impact resistant material, it's sturdy and durable, convenient to observe water level.
Lifting&suspension system	Correct driking line height js very important for chicken, both higher and lower can lead to chicken bone's distortion, which is bad for chicken groiwth, also wast water. It's very easy to adjust the height by winch.

3. Main Feed Line System
Chicken feed silo/Manpower hopper is the beginning of main feed line.
The system can deliver feed from silo/manpower hopper into each vice hopper of pan feeding lines.

Name	Features
Feed silo (Option 1) Manpower hopper (Option 2)	Feed silo: 1).Silo with standard ladder and guard railing, safe and reliable; 2).Firm connection and good sealing performance; 3).Galvanized steel sheet, more than 10 years service life. 4).Size: 3T, 5T, 8T, 10T, 15T, 18T, 20T Manpower hopper: 1).Galvanized steel sheet; 2).Size: 600Kg, 800Kg
Driving motor	Power:0.75Kw Voltage:380V/220V/others, three-phase/single-phase Frequency: 50Hz
Feed conveying pipe with auger inside	Diamater of conveying pipe:Φ75mm, Material:PVC Helical spring auger is imported from South Africa, feed ability:1400Kg/h Conveying length:60m
Sensor	imported from Germany

4. Ventilation System
The system can provide fresh air outside to farms and exhuast bad air of poultry houses.

Specifications	50'' butterfly cone fan	50'' axial flow box fan	36'' axial flow box fan
Flow amount(m3/h)	51020	43170	20800
Size(L*W*H)(mm)	1380*1380*1360	1380*1380*450	1000*1000*450
Noise level(db)	≤65	≤65	≤64
Power(Kw)	1.1	1.1	0.4
Voltage(V)	380/220/others	380/220/others	380/220/others
Current(A)	2.8	2.8	1.25

5. Cooling Pad System
The system can reduce the temperature of poultry houses, which is essensial to chickens raising in Summer.
With working with box fans or butterfly cone fans, farmers could get a better effect of cooling.

Material	Corrugated paper
Thickness	150mm
Width	600mm
Height (without frame)	1500mm, 1800mm, 2000mm
Height (with frame)	1600mm, 1960mm, 2160mm

6. Environment Control System
The system can achieve the aim of controlling farm equipment automatically, such as fans, cooling pads, heaters, etc.
We have different series of controller panel for your choice, Agrologic and Rotem is both available.
7. Heating System
The system can provide suitable heat for chickens, especially day-old chicks.

Contact Us
If you or your friends are interested in our chicken feeding system, welcome to contact
me for more details! Looking forward to doing business with you!
