Lewin Screw Cold Sesame Soybean Groundnut Coconut Mustard Oil Processing Machine Oil Mill Machine Oil Extractor

Product Description

lewin screw cold sesame soybean groundnut coconut mustard oil extractor oil processing machine oil mill machine Product Description
Product Brief of coconut oil press machine:

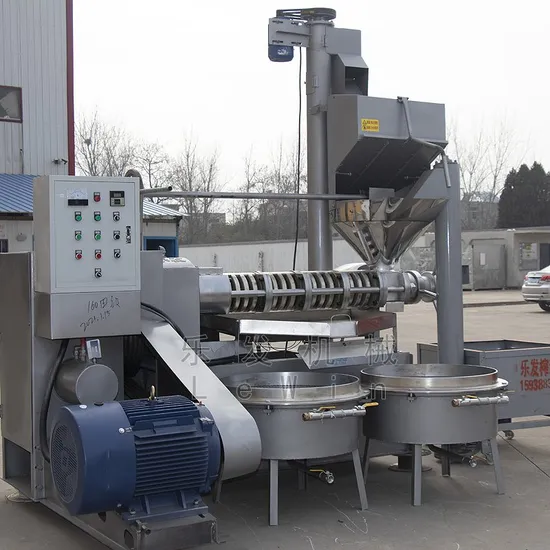

The automatic screw oil press machine is mainly composed of gearbox, spiral juicer, electric control cabinet, L-shaped oil cake feeding system, electric motor and vacuum oil filter system. It is to separate oil from oil-containing materials by squeezing. Under the large pressure created in the press chamber, the oil can be discharged from the space of the press bars.
Working principle:
The raw material enters from the hopper and the spiral juicer pushes the material forward. In the pressing process, the material is squeezed and the oil is discharged from the bar. After vacuum filter system, the oil can reach edible grade.
Sprial series oil presser:

Model	Weight (kg)	The vacuum power	3 Phase 380V	Squeezer speed (r/min)	Capacity (kg/h)	Dimension (mm3)
6YL-120	1500	1.1KW	15KW	60-100	120-160	2000*1600*2700
6YL-130A	1650	1.1KW	18.5KW	60-100	160-280	2600*1600*2700
6YL-160	1900	2.2KW	30KW	60-100	300-600	2650*1900*2700
6YL-180	1980	2.2KW	37KW	60-100	400-750	2700*2000*2700
6YL-220	2000	2.2KW	37KW	100-130	400-800	2900*1900*2700
6YL-230	2100	2.2KW	37KW	100-130	500-900	2920*1900*2700
These model can be choosed according to your needs, customized also can be accepted.

Suitable Materials:
1. This screw sunflower oil presser suits for different oil raw materials, such as coconut, sesame, peanut,avocado, passion seed, sunflower, soybean, olive
etc.,most material has oil content can be pressed. If your raw material are special, we can slao testing pressing them for you for free.
2. The oil cake also can be used again, like feed to animal, or making foods and etc.
Detail instruction
Structure of screw press machine:
1. Press system
Lewin screw oil presser use bar press system, and press system is made by bar, squeezer, press cage parts.
Bar press system can press material evenly and can reduce the oil residue, it can help you get more oil.

2. Oil cake feeding system
Lewin oil presser equip with oil cake feeding system, it can feed oil cake to press again to improve oil yield.

3. Vacuum oil filter system
Lewin oil presser equip with 1 pair of vacuum filter system, it can help you filter oil directly to get pure oil.

4. Motor
Lewin screw oil presser equip with big motor to provide enough power to press material.
Packaging & Shipping
We use film packing the machine to avoiding the humid air demage the machine during shipping, and then use export standard wooden case to protect it.
shipping : 1.We are mechanical products with a high weight, so we recommend sea transportation.
2.We will meet your needs if you have other requirements for the transportation method.
Packing : 1.Making packing inside is film and out side is export standard wooden case.
2. Our wooden case is very strong which can bear long time shipping on the sea
3. Machine with preservative film, it can stop the humid air enter into the machine and make the machine corrosion.
Service
Company Profile
About us:
Since 1998
1. About as 10 years export experience of the machinery equipments, and 22 years of manufacturing experience.
2. Hydraulic oil press machine, screw oil presser, roasting machine, filling machine, capping machine, sealling machine and other grain and oil machinery are our main products.
3.The professional design R&D team, backed by the university and guided by the market to updated the products.

Please let us know what raw material do you want to press and how much output do you
want, it will be help for us to recommed the right machine to meet your needs, and provide the best
experience for you!!!

FAQ
Q: Which machine is best for oil extraction? Hydraulic or screw oil presser? A: It depends on the oilseed. High value oil fit for hydraulic oil press, it is better to use screw oil press machine. If Want to get edible and more oil yield, it's better to use screw oil presserQ: What are the different types of oil pressing machines?A: From the working principle of oil presser, there are 2 types of oil press machine on the market, one is hydraulic oil presser and another called screw oil presserQ: What equipment is used to make sunflower oil?A: One of our screw oil pressers can finish all the processing of making sunflower seed oil. Our machine supports cold press, no need toaster machine. Our screw oil press machine is also equipped with the vacuum oil filter, it can deliver the kitchen grade oil directly.
Q: Can i test the machine before ordering?
A: Yes, of course. We accept customized.
Q: The power supply in our country is unstable. If there is a power outage during the pressing process, will the machine be damaged?
A: Generally it not damaged the machine, when power outage, keep off the machine, when have power, operate the machine is okay. But noted, need let the material in the press system out if power outage.
