75/85 Twin Screw Pet Plastic Sheet Extruder

Product Description

Product Description
I. Application & parapeter
- Use co-extrusion technology, which produce multi-layer co-extruded PET sheet, such as APET/PETG. PETG/APET/PETG. APET/RPET/APET. It widely used in compression molding, printing, metal packaging and etc.
- Equipped with high precision distributor, equal layering and each layer proportion is adjustable.
- Horizontal roller pressing structure, operation and maintenance more convenient.
- Each roller is driven independently by motor, line speed and extruder speed synchronous control.
- PLC control,full automatic functions for the actual parameter setting, data and the feedback operation, the alarm.

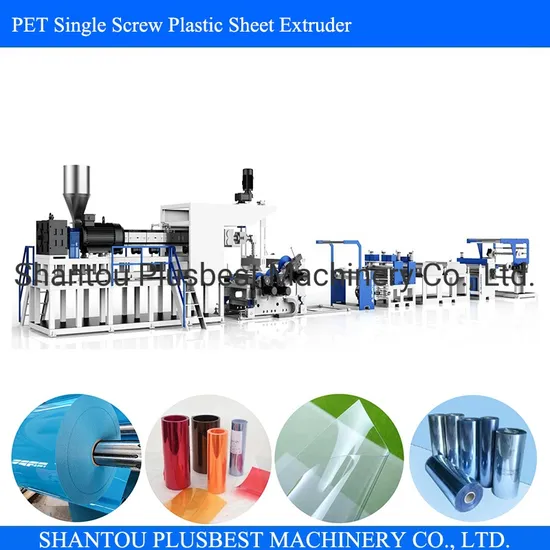

II. Machine Picture
III. Techanical Data

Mode No.	PET75-1000	PET85-1000	PET95/50-1000	PET105/65-1200
Sheet Layer	A		AB/BA/ABA
Available Material	APET,PETG,RPET
Sheet Thickness(mm)	0.12-1.6
Sheet Width(mm)	≤800	≤800	≤800	≤1000
Screw Diameter(mm)	Φ75	Φ85	Φ95/Φ50	Φ105/Φ65
Max. Capacity(kg/h)	400	700	900	1000
Total Power(kw)	275	400	500	600
Dimension(m)	23*4*3	24*4.3*3	25*5*3	25*5.2*3

IV.About Us PLUSBEST is a professional machinery enterprise, supplier, importer and exporter located in SHANTOU CITY OF China.
As the professional machinery enterprise, we our team have already been working in this field for more than decade, focusing on PLASTIC PACKAGING MACHINERY, such as Plastic Sheet Extruder, Thermoforming Machine, Vacuum Forming Machine, Offset Printing Machine, Drinking Straw Machinery, Film Blowing Machine, Auxiliary, Mould etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware etc.
We PLUSBEST MACHINERY have been enjoying a great reputation. So far our overseas business has been reached to Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia. High quality and service by heart make more and more partners working with us for bright future.
With both skillful export experience and professional equipment knowledge, we all PLUSBEST people are always to provide better service and innovating technology support, as well as new products introduction for customers all over the world.
Warmly welcome home and abroad friends to visit PLUSBEST.
