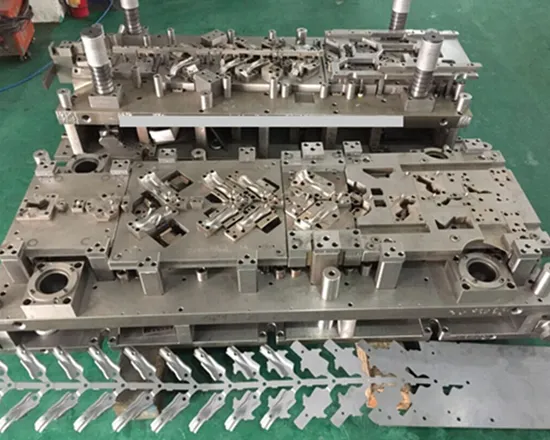

Precision Progressive Tool Stamping Die/Mold/Tooling for Auto Parts Mould
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HH188
Material
Low Alloy Tool Steel
Processing Method
Punching and Shearing Mould
Technics
Cutting Die
Process Combination
Progressive Die
Manufacturing Technology
Computer Technology
Driving Motor Type
Permanent Magnet
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
After-sales Service
Half a Year
Name
Progressive Stamping Die for Sheet Metal Parts
Lead Time
45 Days
Packing
Wooden Case
Customized
Customized
Model No
Hh159
Tolerance
+-0.01mm
Die Life
500, 000 Shots
Mould Material
Cr12, Cr12MOV, DC 53, Skh-9, 45# etc
Cavity
1 to Multiple
Certificate
ISO9001:2008, SGS
Transport Package
Wooden Case
Specification
SGS, ISO
Trademark
huihai auto
Origin
Zhongshan
HS Code
8207300090
Production Capacity
300 Sets/Year
Product Description
Our Advantages:
1. Competitive price
2. Strict quality control system (ISO9001 system manage)
3. Quick mold making and delivery (4-7weeks)
4. Advanced equipment, excellent R&D teams
5. Professional technicians and rich experienced workers
Huihai specializes in manufacturing and supplying of various moulds and dies, such as metal stamping dies, plastic injection moulds, motor stator&rotor molds and stamping parts and injection parts since 2005.
Huihai provides various molds & dies to the clients from USA, Spain, Italy, Russia and so on.
"Good quality with cost-effective" is the base of Huihai business. Huihai people keep creating value for customers as our mission.
ISO 9001: 2008 certificated.
Technical Specifications
| Design Base | Customer product drawings or samples |
| Mold material | Cr12mov, SKD11, D2, M2, DC 53, SKH-9, Copper alloy or the material customer required. |
| Mold base | Standard mold base or customized |
| Standard component | MISUMI, PUNCH, DAYTON, DANLY (or Customer required) |
| Part material fit | SPCC, SPCE, SPCD, DC01, DC04, Stainless steel 304.430.316, Aluminum alloy, and so on |
| Design software | CAE, UG, CAD |
Lead time: 4-7 weeks based on tooling construction
Processing Equipments
| Machine Equipment | QTY | Tapping center | 1 |
| CNC | 5 | Plate shears | 1 |
| WEDM | 2 | Mechanical Press | 13 |
| WEDM-HS | 2 | Hydraulic Press | 2 |
| EDM | 3 | Inspection Equipment | Qty |
| Radial drill | 8 | CMM | 1 |
| Sawing machine | 1 | projector | 1 |
| Grinding machine | 4 | Rockwell-hardness-tester | 1 |
| Milling machine | 2 | Dial Calipers(0-300mm) | 8 |
| Bench drill | 4 | Slide Calipers(0-1000) | 6 |
| lathe | 2 | Pound scale | 1 |
Project process layout
To control the production time, and to decline the probability of clam & return from the end users, making a accurate mold is very important start , we have completed molding produced process to fulfill the needs of client.
TIme control Understanding and controlling the factors of any mold making process is the key to fulfill project control, we use computer analysis and specialized division to take care of controlling mold component unit and predicting work hour. The Parts we'll take into consideration
