Customized High Pressure Carbon Steel Horizontal Vertical Tank Pressure Tanks Vessel

Product Description

Customized High Pressure Carbon Steel Horizontal Vertical Tank Pressure Tanks Vessel
Product Description
Replaceable membrane pressure tanks carbon steel
Working temperature:
Butyl : -20ºC/ 99ºC
Epdm : -20ºC/ 99ºC
Natural Rubber : 0ºC/77ºC
Product Parameters

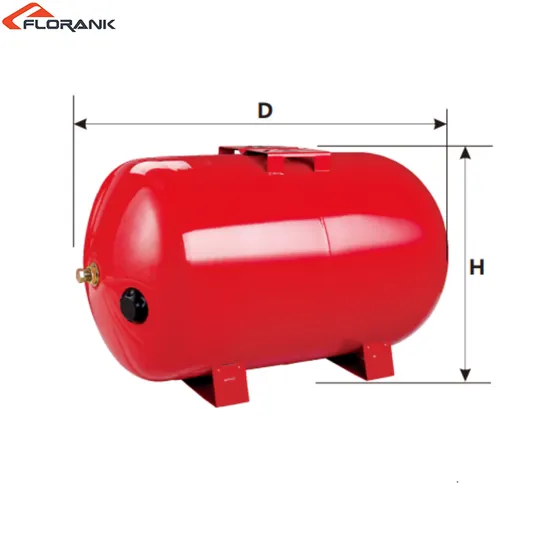

Model	MAX.Pressure (bar)	Length (mm)	Height (mm)	Connector	Precharge pressure (bar)	Packing (cbm)
NCF-60L	6/8/10/16	665	408	1"	1.5	0.10311
NCF-8OL	6/8/10/16	618	470	1"	1.5	0.13248
NCF-100L	6/8/10/16	705	470	1"	1.5	0.15235
WCF-60L	6/8/10/16	680	408	1"	1.5	0.10543
WCF-8OL	6/8/10/16	640	470	1"	1.5	0.13978
WCF-100L	6/8/10/16	725	470	1"	1.5	0.16162
WCF-150L	10/16	980	532	1"	2	0.28028
WCF-200L	10/16	912	660	1 1/2"	2	0.41344
WCF-300L	10/16	1192	660	11/2"	2	0.53530

Detailed Photos
Company Profile

ZHEJIANG FLORANK PUMP INDUSTRY Co., Ltd is a professional manufacturer and exporter of water pumps with over 15 years and specialized in manufacturing vortex pumps, centrifugal pumps, Jet pumps, sel-priming pumps, submersible pumps, screw pumps, sewage pumps, deep well pumps, oil pumps,. They are widely used for domestic appliance, agriculture irrigation, building construction, water boosting and transportation, waste water disposal etc.
With its sound and rapid growth, FLORANK Pump has obtained Certificate of ISO9001: 2000 quality management system, CE certificate and passed the SGS Inspection and BV inspection.
The pumps have been sold and greatly welcomed in the markets of south-east Asia, the Middle East, Africa, East Europe and South America because of its reliable quality and competitive prices.
Professional, Experienced, Trusted, Reliable are FLORANK's concept and philosophy.




FAQ
Q1:Could I put my own logo on it ?
A:Sure,We accept OEM and ODM .
Q2: What is your sample policy ?
A: We can supply the sample ,but the customers have to pay the shipping cost .
Q3:Could I produce according to the samples?
A:Of course .we can produce by your samples or technical drawing,We can build the molds.
Q4:How long is production time ?
A: Based on the quantities ,sample order 7-15 days,mass order 30-60days .
Q5:What is the standard package ?
A: Carton or wooden box.
Q6:Do you test all your goods before delivery ?
A:Of course,we have 100% test before delivery .
