Desktop Double Y-Axis Soldering Robot with Camera and Display
Basic Info.
Model NO.
MD-DL- T4411XF
Condition
New, New
Customized
Customized
Muscle Size
10~31kg
Certification
CE
Control Mode
Continuous Path Control
Drive Mode
Electric
Application
Load
After-Sales Service
Provide
Warranty
1 Year
Transport Package
Wooden Case
Specification
160KG
Trademark
MINDER
Origin
China
HS Code
7318140090
Production Capacity
1000 Set/Month
Product Description

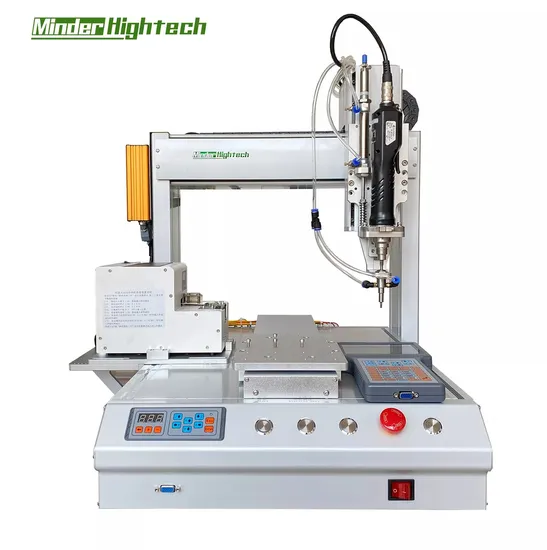

----Desktop Robotic Screw Fastening----Soldering robot & Dispenser Robot
Robotic screw fastening system can increase throughput on a variety of assembly application
Applications
Notebook computers,routers, glasses, cell phones, LCD monitors, watches, integrated board,
5C precision industries, network interface, navigator,TV,kettle,motor etc.
Feature
1. Desktop type, can be placed on the production line.
2. Optional Full english marked machine body, to be international application.
3. Double Y axis type, automatic working alternatively, saving the time of placing object.
4. The screw automatic ranking, automatic feeding, safe and silence.
5. Optional vacuum suction or blowing.
6. Main components of the machine are high quality, ensure the reliability and accuracy.
7. Optional Interface of English/Chinese.
8. Fixture and tooling available
| Model | MD-DL-T3311CQ | MD-DL-T4411CQ | MD-DL-T5511CQ | MD-DL-T53311CQ | MD-DL-T54411CQ | MD-DL-T6441CQ | MD-DL-T7441CQ | MD-DL-T8441CQ |
| Stroke X | 300mm | 400mm | 500mm | 500mm | 500mm | 600mm | 700mm | 800mm |
| Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 400mm | 400mm | 400mm |
| Stroke Y2 | no | no | no | 300mm | 400mm | 400mm | 400mm | 400mm |
| Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Material size | 300*300 | 400*300 | 500*500 | 170*300 | 170*400 | 210*400 | 250*400 | 300*400 |
| Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | |||||||
| Screwer No. | Default 1 PC(optional 2 PCS) | |||||||
| Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | |||||||
| Motion mode | Point to point; line; circle | |||||||
| Positioning accuracy | +- 0.02(mm) | |||||||
| Program | Control Teaching Box/PC | |||||||
| Screw feed mode | air blow | |||||||
| Screw feed speed | 60PCS/Min | |||||||
| Screw driver | SDL series Servo motor screw driver(optional others) | |||||||
| External | RS232 | |||||||
| Screw size | M1.0-M5.0 | |||||||
| Screw length | 4-16mm | |||||||
| Torque range | 0.03-45kgf.cm | |||||||
| Lock speed | 1.5s/ PCS | |||||||
| Program storage | 100groups/1000points per group | |||||||
| Power | 2*220V50Hz | |||||||
| Air | 0.5Mpa | |||||||
| Dimension L | 580mm | 580mm | 780mm | 680mm | 680mm | 680mm | 680mm | 680mm |
| Dimension W | 520mm | 620mm | 720mm | 620mm | 720mm | 830mm | 930mm | 1000mm |
| Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm |
| Weight | 60kg | 70kg | 80kg | 75kg | 80kg | 95kg | 100kg | 105kg |
| Model | MD-DL-T3311XF | MD-DL-T4411XF | MD-DL-T5511XF | MD-DL-T53311XF | MD-DL-T54411XF | MD-DL-T6441XF | MD-DL-T7441XF | MD-DL-T8441XF |
| Stroke X | 300mm | 400mm | 500mm | 500mm | 500mm | 600mm | 700mm | 800mm |
| Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 400mm | 400mm | 400mm |
| Stroke Y2 | no | no | no | 300mm | 400mm | 400mm | 400mm | 400mm |
| Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Material size | 300*300 | 400*300 | 500*500 | 170*300 | 170*400 | 210*400 | 250*400 | 300*400 |
| Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | |||||||
| Screwer No. | Default 1 PC(optional 2 PCS) | |||||||
| Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | |||||||
| Motion mode | Point to point; line; circle | |||||||
| Positioning accuracy | +- 0.02(mm) | |||||||
| Program | Control Teaching Box/PC | |||||||
| Screw feed mode | Vacuum suction | |||||||
| Screw feed speed | 60PCS/Min | |||||||
| Screw driver | SDL series Servo motor screw driver(optional others) | |||||||
| External | RS232 | |||||||
| Screw size | M1.0-M5.0 | |||||||
| Screw length | 4-16mm | |||||||
| Torque range | 0.03-45kgf.cm | |||||||
| Lock speed | 1.5s/ PCS | |||||||
| Program storage | 100groups/1000points per group | |||||||
| Power | 2*220V50Hz | |||||||
| Air | 0.5Mpa | |||||||
| Dimension L | 580mm | 580mm | 780mm | 680mm | 680mm | 680mm | 680mm | 680mm |
| Dimension W | 520mm | 620mm | 720mm | 620mm | 720mm | 830mm | 930mm | 1000mm |
| Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm |
| Weight | 60kg | 70kg | 80kg | 75kg | 80kg | 95kg | 100kg | 105kg |
