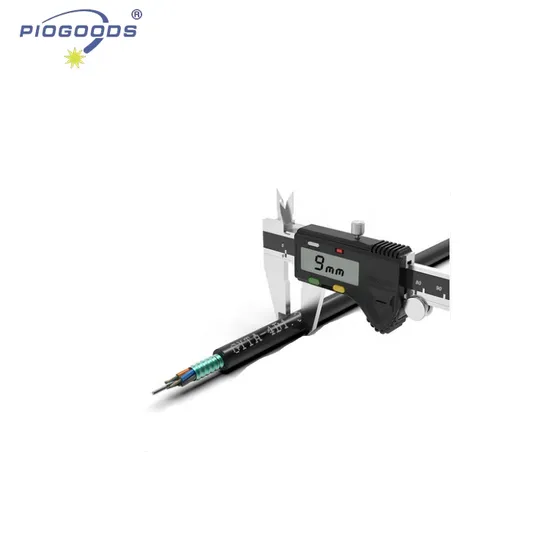

Single Mode Fiber G652D Aluminum Armored GYTA 48 96core HDPE Sheath Fiber Optic Cable

Product Description

Optical Characteristics:

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
(A)Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile Strength / Long/Short Term N	Crush Resistance / Long/Short Term N/100mm	Bending Radius / Static /Dynamic mm
GYTA-2~6	2~6	1	4	9.7	90	600/1500	300/1000	10D/20D
GYTA-8~12	8~12	2	3	9.7	90	600/1500	300/1000	10D/20D
GYTA-14~18	14~18	3	2	9.7	90	600/1500	300/1000	10D/20D
GYTA-20~24	20~24	4	1	9.7	90	600/1500	300/1000	10D/20D
GYTA-26~30	26~30	5	0	9.7	90	600/1500	300/1000	10D/20D
GYTA-32~36	32~36	6	0	10.2	104	1000/3000	300/1000	10D/20D
GYTA-38~48	38~48	4	1	11.0	117	1000/3000	300/1000	10D/20D
GYTA-50~60	50~60	5	0	11.0	117	1000/3000	300/1000	10D/20D
GYTA-62~72	62~72	6	0	11.5	126	1000/3000	300/1000	10D/20D
GYTA-74~84	74~84	7	1	13.4	154	1000/3000	300/1000	10D/20D
GYTA-86~96	86~96	8	0	13.4	154	1000/3000	300/1000	10D/20D
GYTA-98~108	98~108	9	1	14.8	185	1000/3000	300/1000	10D/20D
GYTA-110~120	110~120	10	0	14.8	185	1000/3000	300/1000	10D/20D
GYTA-122~132	122~132	11	1	16.9	228	1000/3000	300/1000	10D/20D
GYTA-134~144	134~144	12	0	16.9	228	1000/3000	300/1000	10D/20D
GYTA-146~216	146~216			16.9	233	1000/3000	300/1000	10D/20D

Storage/Operating Temperature : -40ºC to + 70ºC
Shenzhen Pioneergoods Communication Co., Ltd., established in 2009 and located in Shenzhen,specializes in R&D, production, sales, and technical services for fiber telecom equipment and FTTH solutions. As a leading pro-vider in China, we offer two main product lines:Opticl Fiber Cable: Armored Fiber Optic cable/Duct Fiber Optic cable/Aerial Fiber optic Cable/Direct Buried Fiber Optic cable/Figure 8 Fiber Optic cable/Underwater Fiber Optic cable/ADSS Fiber Optic cableOptical cable installation hardware: Profession-al hardware for indoor and outdoor installation of optical cable, to provide you with a full range of solutions to install optical cable.We prioritize quality, im-plementing a comprehensive control svstem to ensure all products meet the highest standards. From raw materials to delivery, our professional team oversees every step to guarantee excellence. Trusted by global clients like Belden, STC, and Telefonica, we also provide OEM services tailored to cus-tomer needs.At POGOODS, we value customer satisfaction, fostering inno-vation, quality, and efficiency. Choose us for reliable solutions and mutual success. FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI,pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
