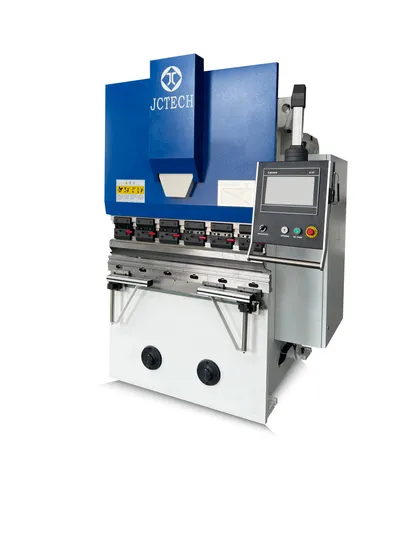

Metal Press Brake Good Price CNC Metal Steel Hydraulic Electro Bending Machine Hydraulic Press Brake

Product Description

Product Description Metal Press Brake Good Price CNC Metal Steel Hydraulic Electro Bending Machine Hydraulic Press Brake
Advantage:
1.Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simpleappearance.
2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.
3.Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic crowning structure
jointly ensure the bending precision of MB8 series Press Brakes.
4.Optimal ratio of parameters and core configuration ensure stable performance, and easy operation.
5.DA53T controller is equipped with standard 4+1 axis (Y1, Y2,R, X axis and W axis crowning). At the same time, suitable die can
be selected to realize bending processing of various workpieces with complex shapes.
6.The Press Brake adopts full closed-loop electro-hydraulic servo synchronous control technology. The position signal of the slide
block is fed back to the CNC controller by the grating ruler on both sides, and then CNC controller controls the opening size of the
synchronous valve and adjusts the quantity of the oil cylinder, so as to control the slide block (Y1,Y2)to run at the same frequency
and always keep the parallel state to the working table.
7.CNC controller will automatically control the deflection compensation of the worktable, in order to achieve uniform angle on full length
of the workpiece according to machine process state.
8.Using hydraulic crowning method or mechanical crowning method, the workpiece with uniform precision over the whole length
of the worktable can be obtained. The hydraulic crowning is composed of a group of oil cylinders in the lower working table, which
can make the working table move relative to each other and form an ideal curve with convection to ensure the relation between the
relative position of the sliding block and the bearing force remains unchanged. The compensation amount is determined by the CNC
controller according to the thickness of the plate and the material characteristics.
Main parts1.Delem CNC Controller--Netherlands
2.Electric-- France brand
3.INOVANCE Servo Motor and Drive--China
4.Merkel Sealing Ring--Germany
5.GIVI Grating Ruler--Italy
6.EMB Oil Tube Connector--Germany
7.Rexroth Valve Block--Germany
8.Rexroth Oil Pump--Germany
9.HIWIN Ball Screw,Linear Guide Rail,Back Stopper--Taiwan
10.Quick Clamps
11.Hydraulic and Electrical Overload Protection
12.Mechanical Fast Punching Dies and V Peplaceable Dies

Model	Column distance(mm)	Throat depth(mm)	Max Opening height F(mm)	Main motor power (KW)	Weight(Kg)
JC312	1000	200	420	7.5	2600
JC415	1150	400	425	4/6.7	3800
JC825	2000	400	460	7.5/8.9	5000
JC1132	2700	405	525	7.5/8.9	8200
JC1141	3600	405	525	7.5/8.9	9800
JC1732	2700	405	525	15/13	11000
JC1741	3600	405	525	15/13	13000
JC2532	2700	405	525	18.5/17	13400
JC2541	3600	405	525	18.5/17	16000
JC3232	2700	405	550	22/21	15000
JC3241	3600	500	550	22/21	18500

DELEM CNC CONTROLLER SERIES
Machine DetailsY1 Y2 Axis Control
Adopt Germany Rexroth fully-closed-loop electro-hydraulic servo control
technology, slider positon signal is feedbacked to controller by Italy GIVI grating
ruler, the the CNC controller adjusts the amount of fuel tank by changing the
synchronous valve opening size, Hereby controlling the slider (Y1,Y2) running on the same frequency,maintaining the parallel state of the worktable.
Step Motor
Stable and efficient, long service life. Energy saving up to 35% compared to conventional systems.X-axis and R-axis Driven Servo Motor
The backgauge is controlled by servo motor with X-axis automatic adjustment function, and Z-axis stopper can be adjusted up and down and moved left and right along with the double track.Backgauge
Backgauge adopts horizontal installation shell structure with high stability, single shell double guide rail, high precision, X-axis drive, automatic controller.
Stop finger fravels along the double guide rail in left and right.Ball Screw and Linear Guide Rail
Taiwan HIWIN High-precision ball screw and Germany Roust linear guide rail.
Backgauge with high reliability, and single-shell double linear guide rails with high precision, X-axis drive, CNC automatic controller.Quick Clamp
The upper die tools are mechanical clamps, with higher safety when worker changing dies.
The dies are made by 42CrMo steel, hardness after heat treatment up to 42 degrees, ensuring the die service life.Standard Toolings
Standard double-V down dies with different size and various shaped slots for choice, convenient for exchanging dies, capable for bending regular plates, with high cost-performance ratio.
CNC double-V die workbench easy for installation of segmented dies.Mechanical Crowning
Motor-driven mechanical crowning, High precision, improving the precision of bending angle and linearity.Related Products Fiber Laser Cutting Machine CNC Electro-hydrulic Press Brake Bending Machine 4 in 1 Handheld Fiber Laser Welding Machine
