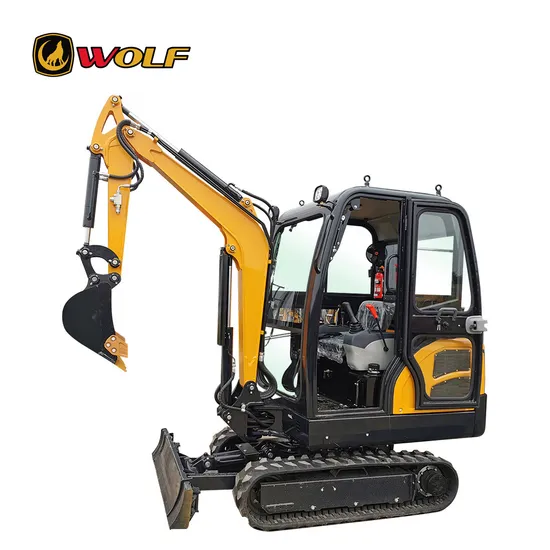

Construction Equipment We18 Mini Crawler Excavator with Concrete Mixer
Basic Info.
Model NO.
WE18
Type
Crawler Excavator
Usage
GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, Rops & Fops
Condition
New
Operating Weight
1800kg
Digging Bucket Capacity
0.1 Cbm
Engine
Laidong Km385b
Rated Power
18.1kw/2200 Rpm
Travel Speed
2.8km/H
Track Width
230 mm
Max. Digging Depth
2050 mm
Max. Digging Height
3370 mm
Max. Dumping Height
2390 mm
Ground Clearance
485 mm
Track Length
1630 mm
Dozer Blade
1050mm * 240 mm
Grade Ability
35 Degrees
Fuel Tank Capacity
26 Litre
Hydraulic System Working Pressure ( MPa)
16 MPa
Transport Package
4 Sets in 1*20gp
Specification
LxWxH(mm) 3800x1050x2280 mm
Trademark
WOLF
Origin
Shandong
HS Code
84295212
Production Capacity
3000 Sets/Year
Packaging & Delivery
Package Size
380.00cm * 105.00cm * 228.00cm
Package Gross Weight
1800.000kg
Product Description
| Overall dimension | Overall dimension( LxWxH) (mm) | 3800x1050x2280 |
| Ground clearance (mm) | 485 | |
| Track length (mm) | 1630 | |
| Track width(mm) | 230 | |
| Undercarriage width (mm) | 1050 | |
| Undercarriage ground clearance width (mm) | 235 | |
| Dozer Blade (mm) | 1050x240 | |
| Engine | Engine model | Laidong KM385B |
| Engine power (kw) | 18.1 | |
| Rated speed (rpm) | 2200 | |
| Main performance | Swing speed (r/min) | 10~12 |
| Traveling speed (km/h) | 2.7 | |
| Grade ability (°) | 35 | |
| Traveling tracking force (KN) | 15 | |
| Bucket Digging Force (KN) | 11.5 | |
| Arm Digging Force (KN) | 9.3 | |
| Hydraulic system | Hydraulic system working pressure (Mpa) | 16 |
| Hydraulic Pump Gear pump | TJHD | |
| Hydraulic pump flow (L/min) | 2×22+8.8 | |
| Swing Motor | Eaton | |
| Traveling Motor | Eaton | |
| Fuel Tank Capacity (L) | 26 | |
| Hydraulic Tank Capacity (L) | 27 | |
| Operation dimension | Operating Weight (kg) | 1800 |
| Digging bucket capacity (m3) | 0.1 | |
| Max. Digging Depth (mm) | 2050 | |
| Max. Digging Height (mm) | 3370 | |
| Max. Dumping Height (mm) | 2390 | |
| Max. Dozer Cutting | 270 | |
| Max. Dozer Lifting | 235 | |
| Tail Swing Radius | 1125 | |
| Front Min. Swing Radius | 1720 |
