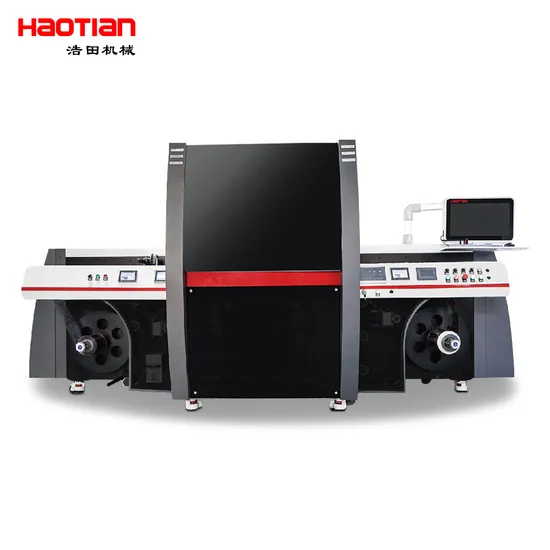

UV Inkjet Digital Label Printer Pet PVC Film Label Digital Printing Machine

Product Description

THE MAIN TECHNICAL PARAMETERS

Model	HTP-220/330	Thickness of printing stack	Rollmaterialsin0.4-0.8mm
Printings peed/min(max)	50m/min	Roll diameter of charging discharging	Maximum diameter650mm
Temperature range	16-32°C	Machine size (L"W"H)	4300mm x 2210mm x 1990mm
Storage Temperature for ink	16-32°C	input power	Three,phase 39OVACS060H2 10KW.
Humidty range	40-60%	Accepted file format	PDF JPEG.BMP and other common file form ats
Input gas supply	0.6.0.8Mp	Material type	Coated or non-coated paper,transparent or non-transparent medium
Width of paper feeding	216mm/324mm	Computer hardware	Main board with HTS.PRIME2370.A:graphics card with HT5.GTX1070.08G.
Printing width	220mm/330mm	Resolution	DP600x600dpior600x1200dpiDPl/rate 1200 dpi25m /min,2400 dpi 12.5m/min
Machine weigh	3.2tunsapproimately	Printing technology	Single Pass UV ink -jet technology, DD D technical.grade nozzle and 4-sradegrade scale
ink	Cured UV printing ink	Image processor	Rip bundle.and synchronous Printing and Rip for big data files are supported saving Rip time.
Color cell of printing	Cold foil & vamish	Drying mode	It consists of four sets of lEDs and a set of lOKW UV lamps to ensure that the material does not deform during curing.

PERFORMANCE AND FEATURES
1.The diversified, high-rate and low rate of products are available' and cycling durationisshort.
2.HTS features with large capacity and fast rate of order alteration without the necessity of equipment.
3.Exclusive RlP colors separationsoftware and original link factory wave form are supported,user-defined creation of ICC in combination with unique texture of UV ink are available,presenting wonderful printing quality and fully expanding the imagination of brand owner.
4.Suitable for a variety of media materials.The nozzles are fully automated to prevent clogging.The test documentintegration and one-button test nozzle print results are supported. Print samples
Machine details
Enterprise certificate
Our company
Our workshop
Packaging and Shipping
Our exhibition
FAQ

1.Are you a manufacturer?
Yes, we have been in making printing machine over 20 years.
2.machine adjustment and installation
We can send technicians go to customers' country for machine installation and adjustment.
4. Quantity and quality guarantee
Quantity/Quality Discrepancy to destination port during transportation: In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination.
Guarantee period and after-sales services: 12 months since installation finish and machine normal working. During this guarantee period, We will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
Long-term service: We will charge the buyer the cost price of spare parts beyond guarantee time and provide long-term technical guide.
5. Validity: 60 days since the quote date
Thanks for your attention! Sincerely hope to work with you in near future!
