Automatic Monthly Deals CAK6150V high Precision Horizontal Metal Automatic CNC Lathe machine

Product Description

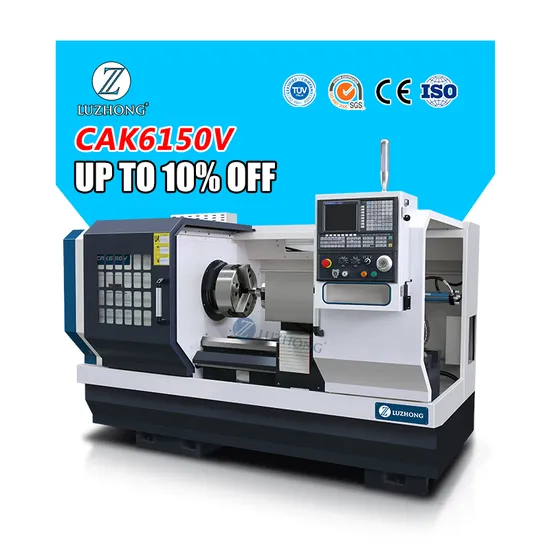

CAK6150V Chinese Precision Horizontal Metal Automatic CNC turning Lathe
Product Description
The main performance characteristics Electric turret 4 position
3-jaw manual chuck
Spindle bore 82mm
7.5KW servo drive main motor
Stepless speed grease spindle
One piece casting structure
400mm bed width Product Parameters

SPECIFICATIONS	Units	CAK6140V	CAK6150V	CAK6160V
Swing over bed	mm	400	500	600
Swing over cross slide	mm	180	250	395
Distance between centers	mm	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000
Spindle bore	mm	82 (Opt. 130)
Spindle bore taper	-	Metric 90/1:20
Spindle nose type	-	A2-8(Opt.A2-11)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	1800 (Opt. 800)
Turret/tool post	-	4 Electric 4 position
Tool size	mm	25*25	25*25	25*25
X axis travel	mm	240	280	320
Z axis travel	mm	750/1250/1750/2750	750/1250/1750/2750	750/1250/1750/2750
X axis rapid traverse	mm/min	6000	6000	6000
Z axis rapid traverse	mm/min	8000	8000	8000
Tailstock quill diameter	mm	75	75	75
Tailstock quill taper	-	MT5	MT5	MT5
Tailstock quill travel	mm	150	150	150
Main motor power	kw	7.5	7.5	7.5(Opt.11)
Coolant motor power	kw	0.125	0.125	0.125
Weight for 1000	kg	2500	2900	3200
Weight for 1500	kg	2900	3300	3500
Weight for 2000	kg	3300	3700	4000
Dimension for 1000	mm	2950*1700*1800	2950*1700*1800	2950*1800*1900
Dimension for 1500	mm	3650*1700*1800	3650*1700*1800	3650*1800*1900
Dimension for 2000	mm	4250*1700*1800	4250*1700*1800	4250*1800*1900

Detailed Photos

MACHINE CONSTRUCT High strength high quality high stability one piece cast iron	QUENCHING BED High frequency quenching guide rail guide rail hardness over HRC52 400mm width guide
SPINDLE 1.Grease spindle with stepless spindle speed 2.GSK 7.5KW servo drive main motor	BIG SPINDLE BORE Standard:82mm spindle bore
CONTROL SYSTEM Standard: GSK980 controller with hand pulse	PRECISION CHUCKStandard:3-jaw manual chuck
TOOL/TURRT Standard:4 position Electric tool post	TAILSTOCK Standard:Manual tailstock
ELECTRICAL CABINET Standard: Electrical components	TESTING Each machine passed Renishaw laser interferometer testing

Optional Accessories
Company Profile

Shandong Luzhong Machine Tool has :
More than 100,000m² of the factory with more than 200 workers.
Strictly QC control with more than 24 steps testing processes
30+ years CNC machine manufacture experience factory
24 hours online service at any time
Trade with customers in more than 150 countries around the word .
Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect.
Support ODM OEM.
Warranty time is 18 months.
Shandong Luzhong Machine Tool Co.,Ltd. Has got many international certifications such as ISO, WIPO, CE, BV, TUV, SGS, and patents. Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and Southeast Asia. And we provide long-term overseas technical guidance and after-sales service for these countries .
Adhering to the "Best Machine by LUZHONG" purposes, We provides better quality machines, more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
