Sjm Series Three Effect Falling Film Countinous Concentrator

Product Description

Product Description

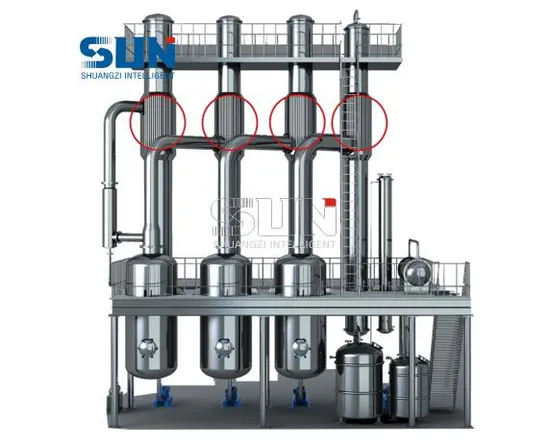

Three effect falling film evaporator
Usage:
Single-Dual-Triple effect falling film concentration unit, suitable to concentrating processing of biochemistry, pharmacy, milk, beverage, condiments, food additives etc.
Equipment composition:
Heater, separator, condenser, preheater, vacuum system, hot-press pump, electrical meter, control cabinet etc. Material 304 or 316L will be fix according to the materials requirement

Liquid-liquid falling film evaporator to recovery ethanol
After the process of plant oil extraction, the extract will do the process of filtration, and then concentration to recovery ethanol by three effect falling film evaporator.

Three effect falling film evaporator feature
1. Materials stays in heating tube for a very short time, this
equipment is especially suitable for concentration of heat-sensitive
materials. It can be continuously feeding and continuously discharge.
2. Evaporating temperature is much low, according to customers
requirement to chose which value of effect and evaporating
temperature.
3. Unique top spray drench cloth film facility of evaporator which has
film well-distributed
4. Unique structure of condenser which has high heat transfer
coefficient, well effect
5. Adopt spray heat press pump, very obvious effect on saving energy
6. Two type of equipment of automatic control and manual control for
choose, according to customers requirement.
We can also supply single-effect falling film concentrator, double effect falling film concentrator.

Project:	Falling film evaporator
Function:	Single effect, double effect, three effect falling film evaporator
Material:	304 or 316L
Method:	Steam heat source
Control:	Siemens or Allen-bradley
Advantage:	1. Continuous operation 2. Short heating on the material, keep the natural character of the material 3. Saving energy, high effective

Three falling film evaporator sucessful project case
The whole system runs well, our evaporator can do the solvent recovery at high efficient level

Falling film evaporator structure	Falling film evaporator working principe
The equipment is composed of a heater, a separator, a condenser, a pre-heater, vacuum system, heat pressure pump, control carbinet. Equipped with quick-open manhole for easy cleaning and feeding.	Steam into the concentration tank jacket, heating the material liquid to be boiling, ethonal(solvent) in the material vaporized, so as to reach the vapor liquid separation, steam out of evaporation chamber through a condenser, a cooler to be ethonal liquid.

Company Introduction
Zhejiang Shuangzi Intelligent Equipment Co.,Ltd has set up a technical team specialized in developing and designing plant extraction production line. After several years efforts, the whole set of equipment developed by Shuangzi has been completed, which can meet the industrial production requirement of plant oil extraction with different production scale specification.Since our first plant oil extraction production line built for our customer, till today, we have built 3 lines, and has another 2 lines are underding building for our customers.

Welding	Finish test
We have 23 welding mechanic with rich experience; Adopts to use auto plasma argon arc welding and manual bozzle welding, the work processing standard ccording to NB/T47-15-2011.	Equipment surface treatment: Inside surface is mirror polish Ra≤0.45um, outside surface yogon treatment Ra≤0.8um

Factory lab Zhejiang Shuangzi has his own lab, we can supply small scale and middle scale test for our customers before design the production line, and we can get the key technical data during the testing, to make sure the high quality of the technical process and design level.
Extraction production line Including countercurrent continous extractor, evaporator, short path distillation, chromatography column	HPLC High performance liquid chromatography

Packing&Shipping
We adopt 2 kinds of packing method, one method is soft felt, another method is plywood box

Soft felt package We will use soft felt wrapping on the equipment body, and then fix on one pallet

Plywood box We will use plywood box to pack small size spare parts, pump, valves...

After Sales Service
There are 6 engineers and 15 workers have USA visa, so we can be easy to visit USA to supply installation services for our USA customers. 1. Technical trainning
2. Technical documents
3. Customers field installation
4. Customers field debugging
5. One year quality guarantee
